200kw 380v Liquid Cooling Load Bank

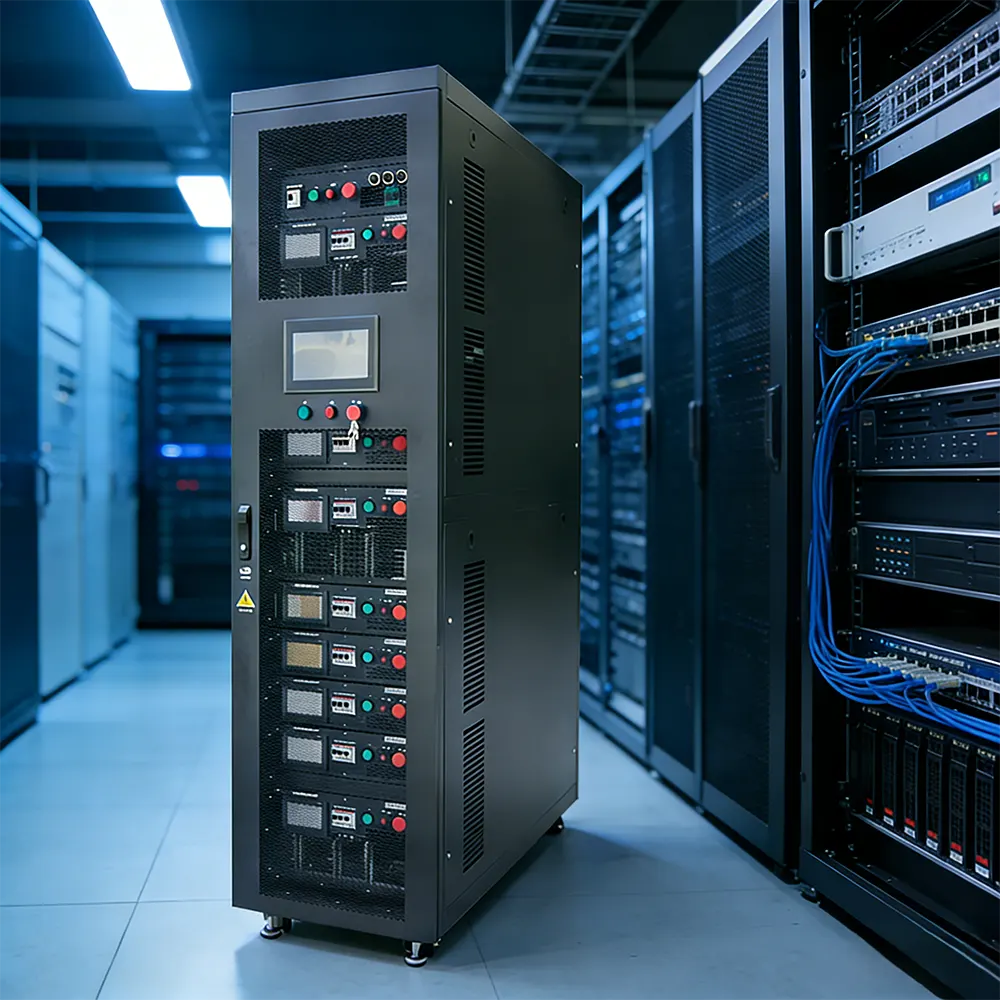

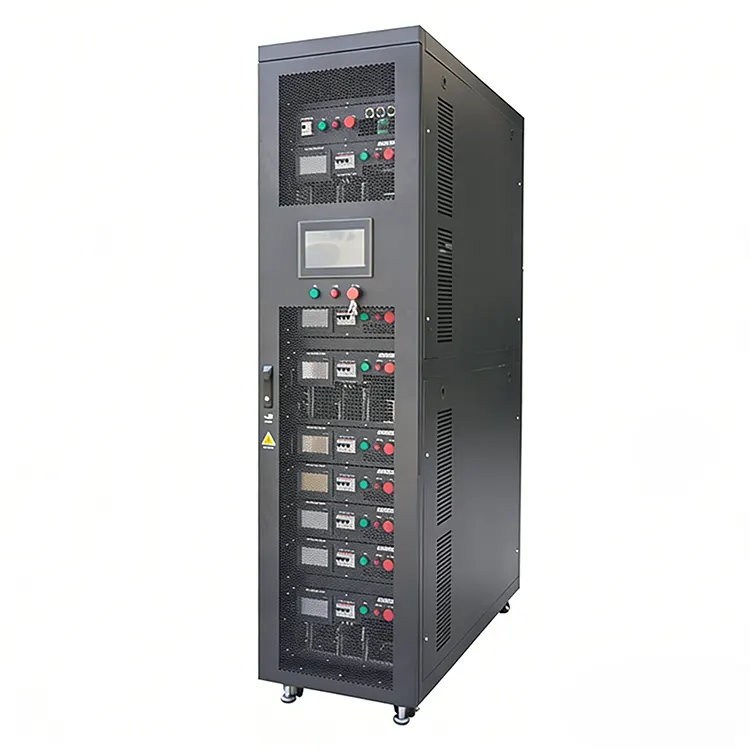

The 200kW 380V Liquid Cooled Load Bank from RST Electric represents a paradigm shift in high-power testing technology. Housed in a standard 42U rack enclosure (W600×D1400×H1800mm), this 200kW 380V Liquid Cooling Load Bank eliminates the need for massive air handlers or facility exhaust systems by transferring heat directly to a facility's existing liquid cooling infrastructure. The system features a 304 stainless steel coolant circuit with DN32 inlet/outlet connections, capable of handling flow rates up to 200L/min (12m³/h) at design pressures of 0.4MPa.

Precision temperature sensors monitor inlet/outlet coolant temperatures, maintaining a stable thermal load with ≤15°C temperature rise at full power and ≤5psi pressure drop. The resistive load bank itself offers 5kW step resolution with ±2% loading accuracy, enabling granular simulation of real-world IT loads. Control options include local HMI touchscreen, remote PC software, RS485/Modbus RTU, and full data logging capabilities.

As a leading 200kW Liquid Cooling Load Bank manufacturer in China, RST Electric combines over 15 years of power resistor expertise with cutting-edge liquid cooling technology to deliver solutions that meet the demanding requirements of next-generation data centers and high-performance computing facilities.

Technical Specification

Product Features

1.Ultra-High Power Density – Delivers 200kW in a compact 42U footprint, ideal for space-constrained data center environments .

2.Quiet Operation – Eliminates traditional load bank fan noise; only the circulating pump generates minimal sound (<65dB), making it suitable for occupied office or laboratory spaces .

3.Precise Thermal Management – Real-time monitoring of flow rate, inlet/outlet temperature, and pressure drop enables accurate CDU and cooling system validation .

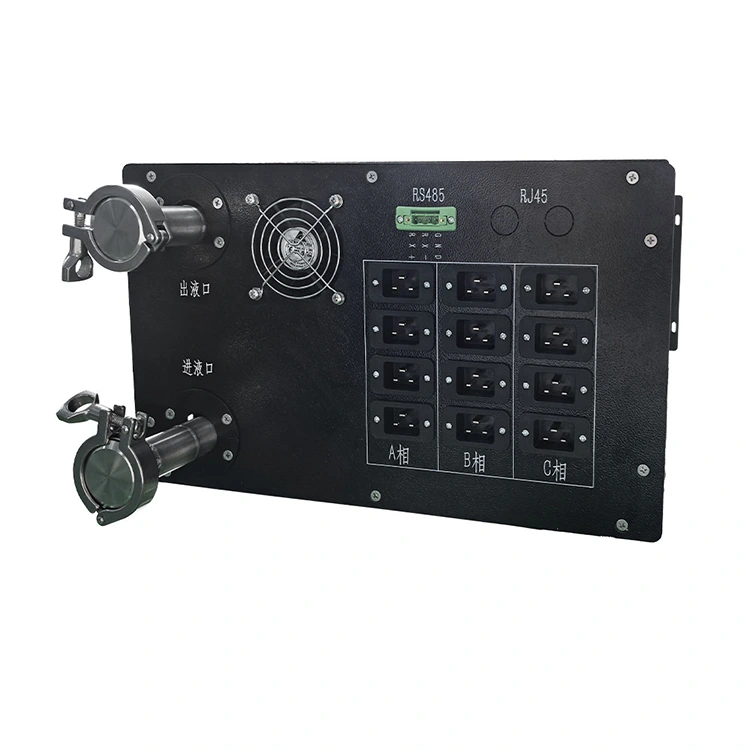

4.Stainless Steel Coolant Circuit – 304 stainless steel construction with DN32 tri-clamp connections ensures corrosion resistance and compatibility with various cooling media .

5.Redundant Connections – Dual inlet/outlet ports (1+1 redundant) allow connection to primary and backup cooling systems without reconfiguration .

6.Comprehensive Safety Suite – Includes liquid leakage detection, flow failure protection, and over-temperature shutdown – critical for sensitive data center environments.

7.High-Resolution Loading – 5kW step increments enable precise simulation of server rack power profiles from partial to full load.

8.Independent Operation – No dependency on facility air conditioning for heat removal; heat is rejected directly via the customer's liquid cooling infrastructure.

9.Real-World Simulation – Accurately emulates the thermal and electrical characteristics of high-density server racks (>30kW per rack) for D2C (Direct to Chip) cooling validation .

10.Advanced Data Acquisition – Records and logs all critical parameters for post-test analysis and reporting.

Product Applications

● Data Center CDU Testing – Validates the performance of Coolant Distribution Units (CDUs) under simulated IT loads up to 200kW .

● Liquid-Cooled Server Development – Provides controlled thermal loads for testing direct-to-chip and immersion cooling systems in R&D labs .

● Facility Thermal Management Studies – Characterizes the heat rejection capacity of data center cooling infrastructure under various load scenarios.

● High-Performance Computing (HPC) – Simulates the thermal output of GPU clusters and high-density computing racks for cooling optimization.

● Laboratory & Test Environments – Enables quiet, clean, and efficient power testing in acoustically sensitive or air-quality-controlled spaces.

● Hyperscale Data Center Commissioning – Validates the integration of liquid cooling systems with power distribution and monitoring infrastructure .

● Cooling System Retrofit Validation – Tests the capacity of upgraded or modified cooling systems before live IT deployment.

About Package

The 200kW 380V Liquid Cooling Load Bank is precision-engineered equipment requiring careful handling during transit. RST Electric packages each unit with the following protective measures:

● Unit securely bolted to a heavy-duty pallet with vibration-dampening mounts

● Wrapped in waterproof VCI film to prevent moisture ingress

● Enclosed in a custom plywood crate with foam cushioning at critical points

● All coolant connections capped and sealed to prevent contamination

● Documentation package includes pressure test certificates, material certifications, and factory test reports

Shipping options include LCL or FCL sea freight, air freight, or express courier for urgent requirements. Prior to shipment, every 200kW Liquid Cooling Load Bank undergoes a full factory acceptance test (FAT) including pressure testing, leak detection, and full-load thermal validation.

About RST Electric

Direct Factory, Liquid Cooling Experts

● We are a certified Manufacturer based in China, specializing in advanced 200kW 380V Liquid Cooling Load Bank production.

● Complete in-house control over design, cooling circuit fabrication, electrical assembly, and testing – ensuring superior quality.

● Factory-direct pricing on every 200kW Liquid Cooling Load Bank, with transparent cost structure and no middlemen.

Professional Manufacturing & Thermal Expertise

● Over 15 years of experience in power resistor engineering, now extended to liquid-cooled solutions for next-gen applications.

● ISO 9001 certified facilities with dedicated cleanroom for cooling circuit assembly.

● 100% helium leak testing performed on every coolant circuit before final assembly.

● In-house thermal simulation and validation capabilities for custom cooling requirements.

Global Experience, Trusted Supplier

● Proven Supplier to data center operators, IT equipment manufacturers, and cooling system integrators worldwide.

● Export track record to USA, Europe, Singapore, and Middle East markets.

● Deep domain expertise in data center thermal management and high-density power testing.

Endless Customization

● Cooling medium options: Deionized water / Glycol mixtures / Dielectric fluids / Custom.

● Connection types: DN32 tri-clamp / NPT threads / Quick-connect couplings / Custom.

● Flow control: Manual valves / Automated flow control / Variable speed pump integration.

● Control enhancements: Advanced PLC, Building Management System (BMS) integration, remote monitoring.

● Metering options: Basic / Precision flow meters / Multi-point temperature sensing.

● Enclosure variants: Open frame / 42U rack / Custom dimensions.

Reliable Delivery & Lifetime Support

● Standard lead time: 30-45 working days for custom 200kW 380V Liquid Cooling Load Bank configurations.

● Comprehensive documentation: Pressure test reports, material certifications, O&M manuals, CE/ISO certifications.

● 18-month warranty with remote diagnostics and global spare parts network.

● Optional on-site commissioning, cooling system integration support, and operator training by RST field engineers.

Project Cases

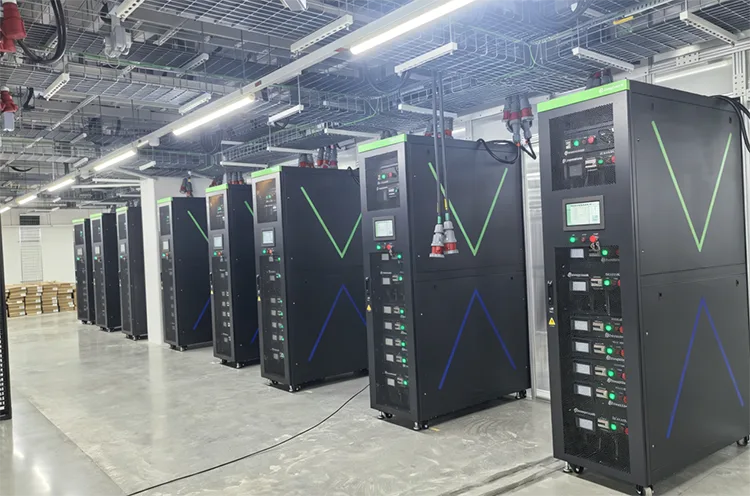

1. Project Background

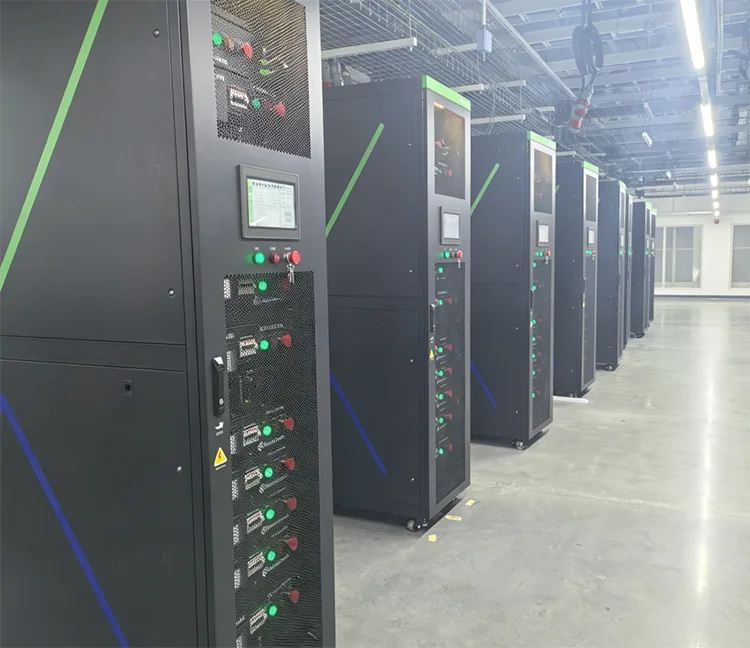

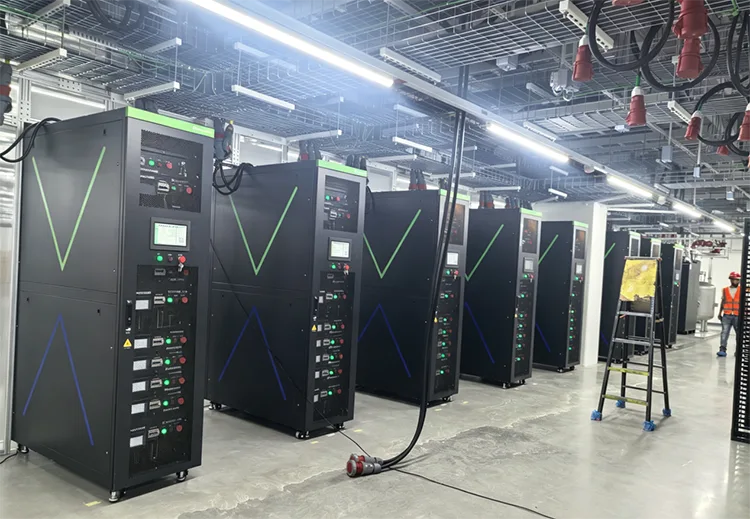

This hyperscale AI data center in Johor, Malaysia adopts full cabinet CDU liquid cooling circulation system for GPU server cluster. In project acceptance phase, the core requirement is to authentically verify actual cooling capacity of CDU liquid circulation loop, simulate real heat dissipation load generated by in-cabinet high-density servers.

Traditional air-cooled load cannot connect with site water circulation pipeline, unable to feed constant heat load into CDU loop for long-run cooling performance inspection; bulky air cooling equipment cannot be installed inside standard 19-inch rack to restore real cabinet heat layout.

Affected by Malaysia tropical high-temperature ambient all year round, clients need rack-type liquid access load bank matching onsite coolant medium to complete continuous thermal load inspection of CDU system and synchronous UPS/standby generator full-load testing. RST Electric supplied batch 200kW 380V closed liquid-cooled rack load banks to realize accurate CDU cooling capability certification complying with local TNB power acceptance standards.

2. Core Technical Specifications & Design Advantages

Electrical Rating

Rated Power:200kW, AC380V (compatible 380~480VAC 50Hz), PF=1 pure resistive load

Load split:6kW+6kW+12kW+12kW four independent steps, minimum 6kW fine adjustment, tolerance ±5%

Continuous 24h full-load operation; wiring optional 1P2W/3P4W per Malaysia power specs

Real-time monitoring: voltage, current, power, coolant inlet & outlet temperature, pipeline water pressure, core data for judging CDU heat exchange efficiency.

Material & Structural Features

(1) Liquid Circulation Matching Design: Closed liquid cooling circuit supports customer’s on-site water-glycol coolant, standard 1"NPT quick connect ports directly dock with CDU pipeline; rated coolant flow 10~25L/min, max inlet water temp 40℃, pipeline pressure drop ≤2bar. Stable continuous heat output transfers fixed heat into CDU circulation loop to test actual heat removal efficiency of liquid cooling system.

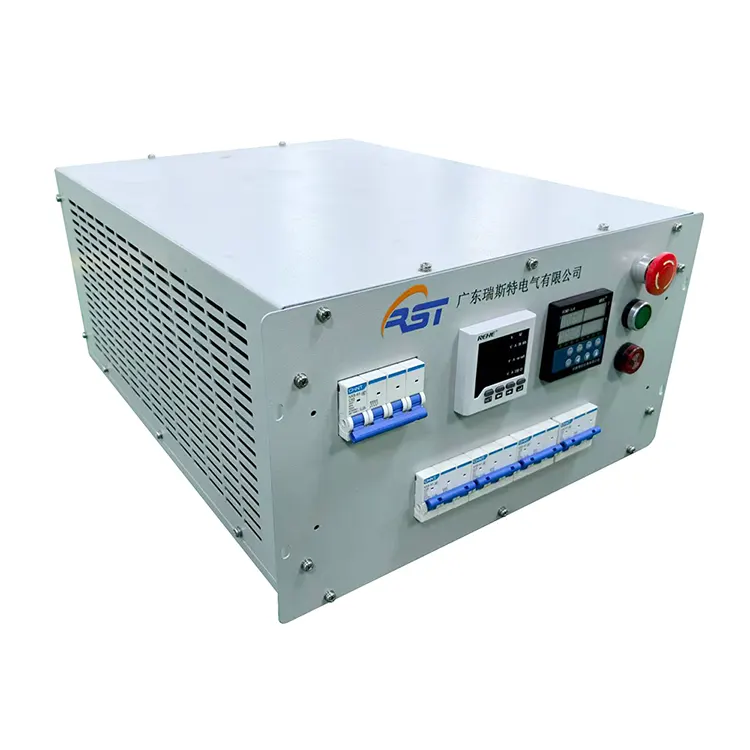

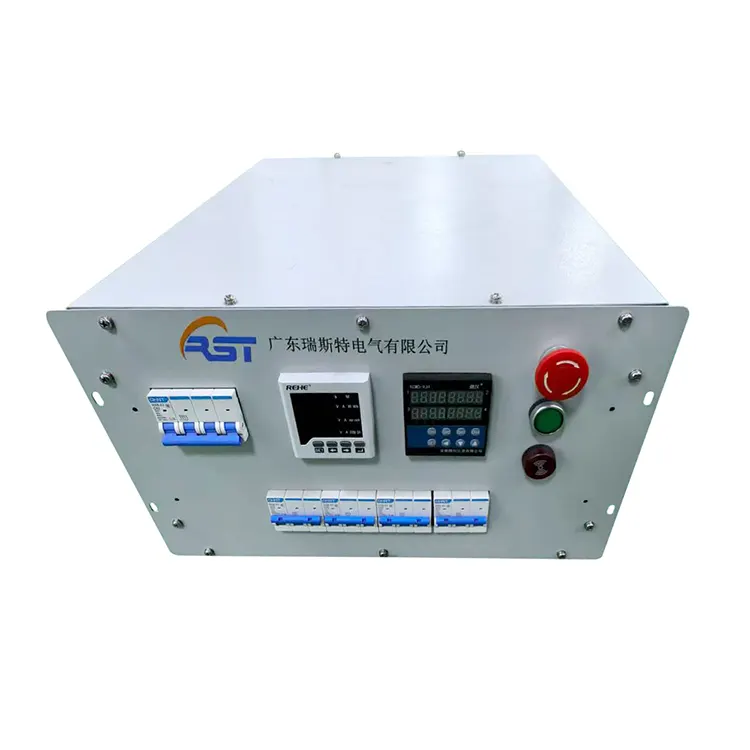

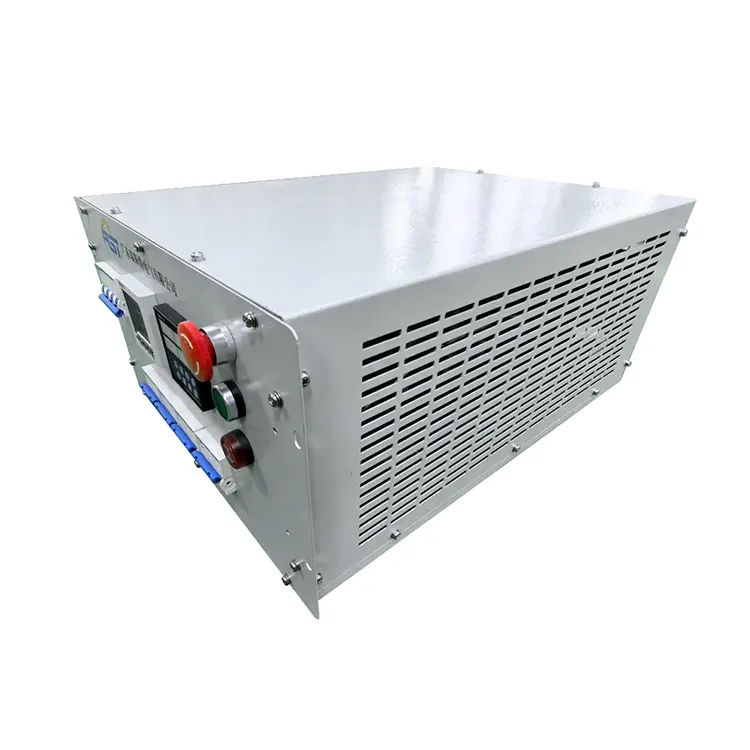

(2) 6U 19-inch Rack Chassis: Dimension 482×D650×H266mm, RAL7035 coating, dry weight 35~45kg, directly embedded in server rack to restore real cabinet heat generation environment of online servers.

(3)  Complete Safety Protection: Short circuit, overcurrent, over-temperature, emergency stop, low coolant pressure & optional door interlock protection; auto alarm and load drop when abnormal, guarantee long-term uninterrupted CDU aging test.

(4)  Multi-control Mode: Local manual / auto / portable remote / PC software control; RS485 Modbus optional, upload temp & flow data to IDC SCADA for real-time CDU operation data recording.

3. Onsite Installation & Commissioning Standard

(1) Install per Malaysia electrical code; units slide into standard cabinet slots and fix with front handles, independent power wiring, liquid inlet/outlet quick-couple with CDU circulating pipeline, reliable PE earthing.

(2) All units pass factory full-load burn-in and pipeline pressure tightness test before delivery with official test reports. Onsite commissioning adjusts coolant flow rate step by step, loads 6kW~200kW progressively, records inlet/outlet water temperature difference to quantify CDU heat exchange capacity, verify all control and protection functions.

(3) Daily Operation Rule: Weekly check pipeline for leakage; regularly clean CDU circulating filter to avoid insufficient flow affecting cooling effect; no combustibles stored around server cabinets.

4. Troubleshooting & After-sale Maintenance Service

Common faults including abnormal overheating, insufficient coolant pressure, communication failure and false protection alarm sorted in official maintenance manual;

Periodic Inspection: Every 6 months check pipeline tightness, clean internal resistor dust, regular insulation test with megohmmeter.

Warranty: 18-month warranty from shipment date, free repair & replacement for manufacturing defects; lifelong spare parts & English remote technical support, optional local engineer on-site training for bulk order. Custom power, voltage, liquid interface and communication protocol for later data center expansion project.

5. Project Outcome

(1) Rack-mounted liquid structure directly accesses CDU circulation pipeline, stably outputs graded fixed heat load, accurately verifies actual heat removal capacity of each CDU loop; realizes real cabinet thermal simulation that traditional air load cannot achieve, CDU acceptance efficiency raised over65%.

(2) Stable closed liquid circulation adapts Malaysia high ambient temperature, long-time continuous loading without overheat shutdown, all CDU cooling performance indexes pass acceptance standard successfully.

(3) Automatic data collection of water temp, flow and power facilitates client’s CDU test report compiling, greatly cuts manual test cost for IDC project.
