A blower motor resistor is a critical component in a vehicle’s heating, ventilation, and air conditioning (HVAC) system. It controls the speed of the blower fan by varying the voltage delivered to the motor—typically offering three to four speed settings. When you select a low or medium fan speed, the resistor dissipates the excess electrical energy as heat, allowing only the desired voltage to reach the motor. Without a functioning motor resistor, the fan may only operate at the highest speed (bypassing the resistor) or stop working altogether.
At RST Electric, we manufacture high-reliability resistors for both 12V and 24V vehicle electrical systems. Our RXQ series is engineered to withstand the demanding conditions of passenger cars, commercial trucks, buses, and off-highway equipment. With over 10 years of automotive resistor expertise and IATF 16949 certified facilities, we deliver components that restore proper HVAC function and ensure passenger comfort.
Selecting the correct blower motor resistor requires consideration of several key factors:
·System Voltage: Determine whether your vehicle operates on a 12V (passenger cars, light trucks) or 24V (commercial trucks, buses, heavy equipment) electrical system. Our RXQ series offers specific versions for each voltage.
·Resistance Value: The resistor must match the OEM specification to produce the correct voltage drop for low and medium fan speeds. Common values include 0.15Ω (for 12V systems) and 0.30Ω (for 24V systems).
·Power Rating: Blower resistors must handle continuous thermal stress. Our units are rated at 50W, providing ample margin for sustained low-speed fan operation.
·Thermal Protection: A built-in thermal fuse (typically 240°C) is essential for safety. It permanently opens the circuit if the resistor overheats due to fan motor failure or restricted airflow, preventing fire hazards.
·Lead Configuration: Pre-wired leads with the correct gauge (1.5–2.5mm²) and length (150–300mm) simplify installation, eliminating the need for cutting or splicing.
·Mounting & Form Factor: The resistor must physically fit the vehicle’s blower housing or HVAC case. Our RXQ series is designed for direct replacement with dimensions that match common OEM footprints.
·Environmental Durability: Look for resistors that withstand temperature extremes (-55°C to +155°C), vibration (50m/s²), and humidity (95% RH), ensuring reliable operation in under-dash and engine bay environments.
By evaluating these parameters, you can ensure that your motor resistor provides safe, reliable fan speed control for years to come.

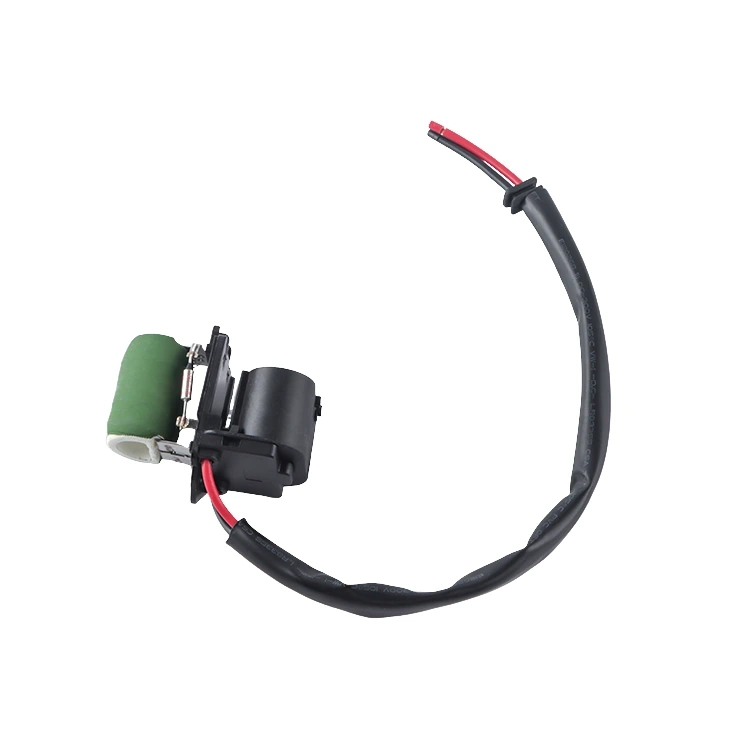

The RXQ series for 12V systems is engineered for passenger cars, light trucks, and SUVs. With a resistance of 0.15Ω (±10%) and a 50W power rating, it delivers the precise voltage drop required for low and medium fan speeds. A built-in 240°C thermal fuse provides fail-safe over-temperature protection. The unit comes pre-wired with 1.5–2.5mm² leads (150–300mm length), allowing direct plug-and-play installation without additional crimping. Housed in a flame-retardant, high-temperature plastic case, it withstands the harsh under-dash environment.

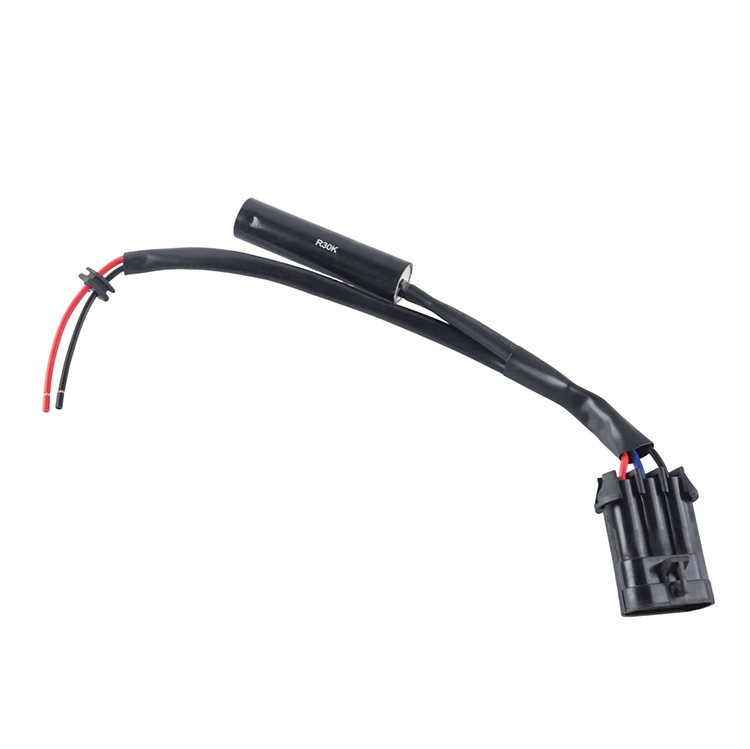

For commercial vehicles—including trucks, buses, agricultural equipment, and construction machinery—the RXQ series for 24V systems offers the same robust construction with a resistance value of 0.30Ω. This value is specifically selected to achieve proper voltage reduction in 24V electrical architectures. Like its 12V counterpart, it features a 240°C thermal fuse, pre-wired leads, and a rugged housing designed to withstand high vibration, temperature cycling, and exposure to dust and moisture.
We understand that vehicle platforms vary widely. Our engineering team specializes in custom configurations, including:
·Alternative resistance values for unique fan speed requirements
·Thermal fuse ratings from 200°C to 260°C
·Custom lead lengths, gauges, and connector types (OEM-specific)
·Modified mounting brackets or housing shapes
·Special packaging for aftermarket distribution
| Vehicle Category | Specific Application | Recommended Series |
| Passenger Vehicles | Cars, SUVs, light trucks | 12V RXQ |
| Commercial Trucks | Class 8 trucks, delivery vehicles | 24V RXQ |
| Buses & Coaches | Transit buses, school buses, motor coaches | 24V RXQ |
| Off-Highway Equipment | Agricultural tractors, excavators, loaders | 24V RXQ |
| Emergency Vehicles | Ambulances, fire trucks | 12V / 24V RXQ |
| Recreational Vehicles | Motorhomes, camper vans | 12V RXQ |
| Aftermarket Replacement | Parts distributors, repair shops | 12V / 24V RXQ |
As a certified manufacturer based in China, we maintain full control over design, production, and testing. Our factory-direct pricing ensures competitive costs without compromising quality.
Our 7,000+ square meter facility is equipped with automated winding machines, thermal fuse integration lines, and comprehensive test stations. Every blower motor resistor undergoes:
·100% resistance and tolerance verification
·Insulation resistance testing (>20MΩ at 500VDC)
·Dielectric withstand testing (2000VAC for 5 seconds)
·Thermal fuse continuity and function validation
·Sample testing for temperature cycling (-55°C to +155°C), vibration (50m/s²), and endurance (1000 hours)
We specialize in custom configurations to match your exact requirements:
·System voltages: 12V, 24V, or custom
·Resistance values: Standard (0.15Ω, 0.30Ω) or custom
·Power ratings: 50W standard (custom available)
·Thermal fuses: 240°C standard (200°C–260°C available)
·Lead specifications: 1.5–2.5mm², 150–300mm, custom lengths and connectors
·Housing: Standard or custom dimensions and mounting configurations
With exports to over 40 countries, including the United States, Germany, Australia, and Japan, we have earned a reputation for reliability. Our multilingual technical support team provides pre-sales consultation, application engineering, and after-sales service.
Q: What are the symptoms of a failed blower motor resistor?
A: Common signs include the fan operating only on the highest speed (or not at all), intermittent fan operation, or a burning smell from the vents. These indicate that one or more resistor elements have failed, often due to thermal stress.
Q: Why does my motor resistor keep failing?
A: Repeated failures often point to an underlying issue such as a failing blower motor (drawing excessive current), restricted airflow (clogged cabin filter), or poor electrical connections. Always inspect the motor and system before replacing the resistor.
Q: What is the purpose of the thermal fuse in a motor resistor?
A: The thermal fuse is a safety device that permanently opens the circuit if the resistor exceeds a safe temperature (typically 240°C). This prevents fire hazards caused by fan motor failure, blocked vents, or prolonged operation at low speeds.
Q: Can I replace a 12V motor resistor with a 24V version?
A: No. The resistance values are different, and using the wrong voltage version will result in incorrect fan speeds or rapid failure. Always match the resistor to the vehicle’s electrical system.
Q: How do I install a blower motor resistor?
A: Installation typically involves locating the resistor (often near the blower motor under the dashboard or in the engine bay), removing the electrical connector, unscrewing the old unit, and installing the new one with the pre-wired leads. Our RXQ series is designed for direct replacement with OEM fit and function.
·12V Blower Motor Resistor (RXQ Series) – For passenger cars, light trucks, and SUVs. 0.15Ω, 50W, with 240°C thermal fuse.
·24V Blower Motor Resistor (RXQ Series) – For commercial trucks, buses, and heavy equipment. 0.30Ω, 50W, with 240°C thermal fuse.
·Custom Blower Motor Resistors – Engineered to your exact specifications, including custom resistance values, lead lengths, and mounting configurations.
