24v Blower Motor Resistor

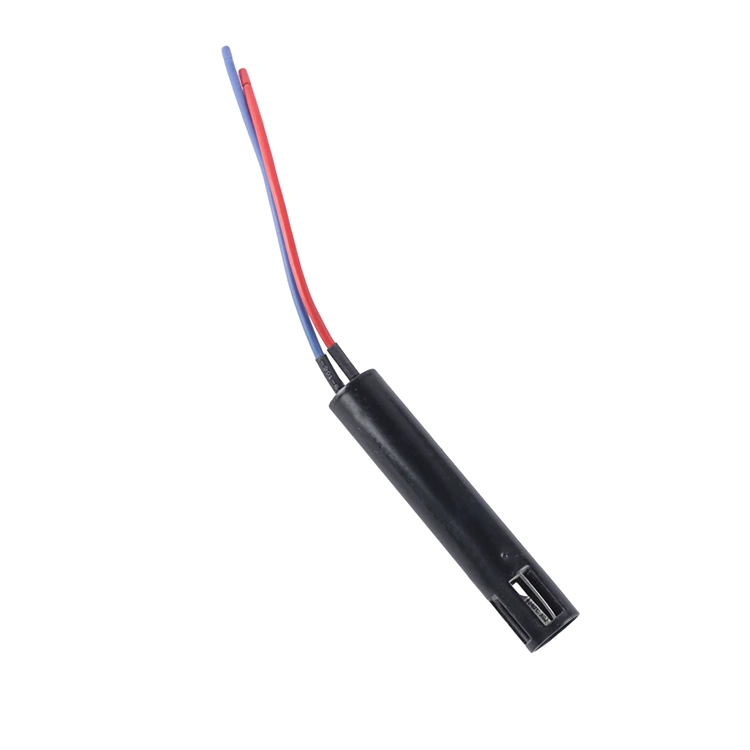

The 24V Blower Motor Resistor from RST Electric is purpose-engineered for the demanding thermal management requirements of commercial vehicles. Unlike passenger cars with 12V systems, trucks, buses, and heavy equipment operate on 24V electrical architectures, requiring different resistance values to achieve proper fan speed reduction. This Cooling Fan Speed Control Resistor utilizes a 0.30Ω wirewound element rated at 50W, precisely selected to create the correct voltage drop for low-speed radiator fan operation in 24V systems. Its robust construction ensures reliable performance even under sustained high-temperature conditions, such as when the engine is idling or operating in hot climates.

Highly secure and durable design

The resistor’s design prioritizes safety and durability in harsh operating environments. The resistive element is encapsulated in a flame-retardant, high-temperature housing that resists degradation from engine bay heat, coolant exposure, and road contaminants. A critical safety feature is the integrated 240°C thermal fuse, which permanently opens the circuit if the resistor overheats due to fan motor seizure, restricted airflow, or prolonged low-speed operation – preventing wiring harness damage and potential fire hazards. The unit is supplied with pre-attached 1.5–2.5mm² leads (150–300mm length), terminated with crimped connectors or bare ends as specified, enabling direct replacement without the need for cutting or splicing.

What tests have been conducted on the equipment?

Each unit undergoes rigorous testing to meet commercial vehicle reliability standards. Insulation resistance exceeds 20MΩ at 500VDC, and dielectric withstand is verified at 2000VAC for 5 seconds with no breakdown. Overload testing at 5× rated power for 5 seconds confirms the element’s pulse capability, while temperature cycling from -55°C to +155°C (3 cycles) validates structural integrity. Vibration testing at 50m/s² (10Hz–500Hz) simulates the harsh conditions of off-highway equipment. Endurance testing at rated voltage for 1000 hours ensures long-term stability. As a trusted 24V Blower Motor Resistor manufacturer in China, RST Electric combines over 10 years of automotive resistor engineering with precision manufacturing to deliver components that maintain proper engine cooling and HVAC function in commercial vehicles.

Technical Specification

What are the features and advantages of 24v Blower Motor Resistor?

1.Dedicated 24V Commercial Vehicle Design – Specifically engineered for 24V electrical systems in trucks, buses, and heavy equipment, ensuring correct voltage drop for low-speed cooling fan operation.

2.Built-in 240°C Thermal Fuse – Integrated over-temperature protection permanently disconnects the circuit if the resistor overheats, preventing wiring harness damage and fire hazards.

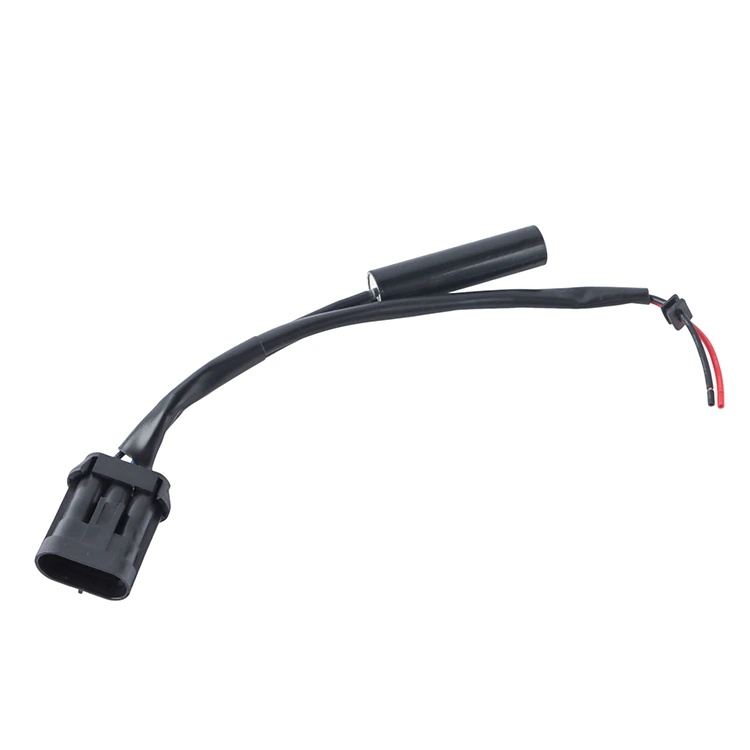

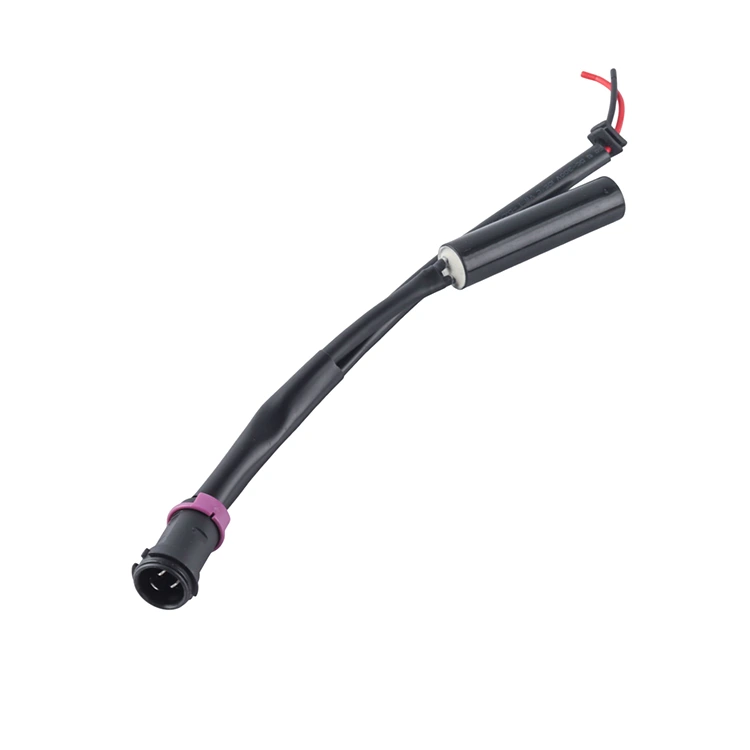

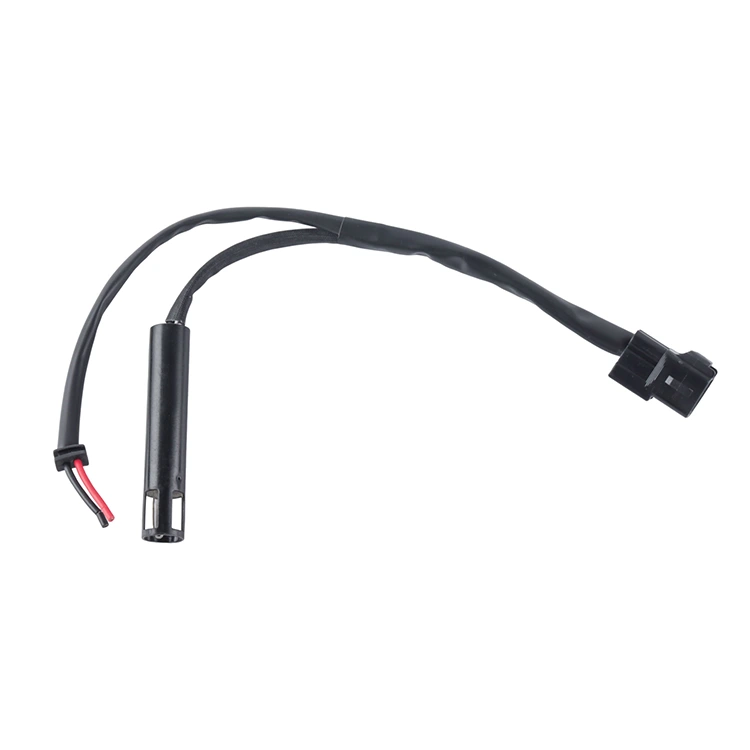

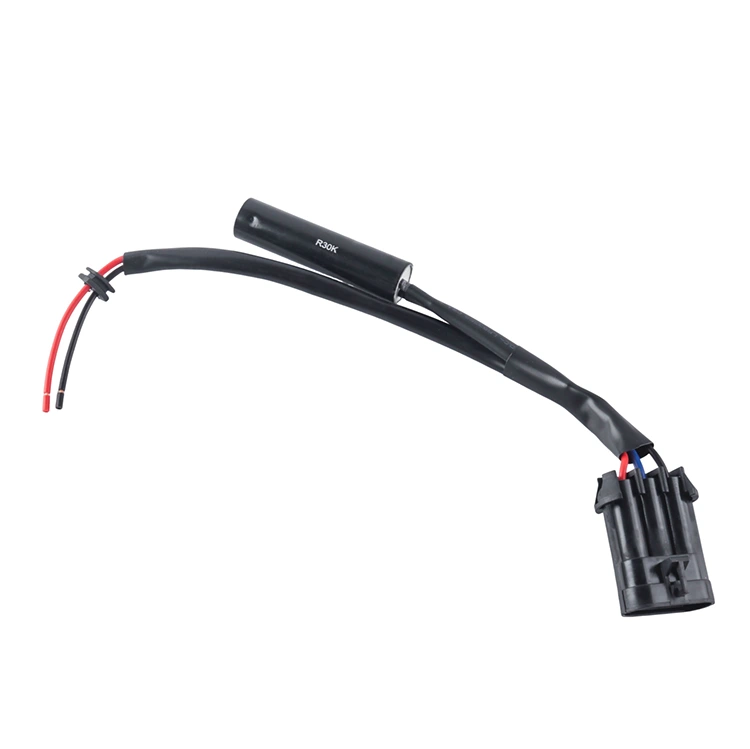

3.Pre-Wired for Quick Replacement – Supplied with 1.5–2.5mm² leads (150–300mm) pre-attached, reducing installation time and eliminating the need for additional crimping.

4.High Thermal Capacity – 50W rating with wirewound element withstands repeated thermal cycling from continuous low-speed fan operation in high-ambient-temperature environments.

5.Extreme Environmental Durability – Withstands temperature extremes (-55°C to +155°C), high vibration (50m/s²), and humidity (95% RH, 96 hours) per commercial vehicle standards.

6.Flame-Retardant Housing – High-temperature, flame-resistant casing ensures safety in engine bay environments where exposure to heat and fluids is constant.

7.High Electrical Safety Margin – 2000VAC dielectric withstand and >20MΩ insulation resistance guarantee safe operation in 24V vehicle electrical systems.

8.Reliable Long-Term Performance – Endurance tested at rated voltage for 1000 hours with ΔR ≤ ±10%, ensuring consistent cooling fan control over years of service.

9.Comprehensive Quality Validation – 100% testing of resistance, insulation, and dielectric strength; sample testing for temperature cycling, vibration, and overload.

10.Customizable for OEM Applications – Available with specific lead lengths, connector types, thermal fuse ratings, and mounting configurations to match original equipment.

Product Applications

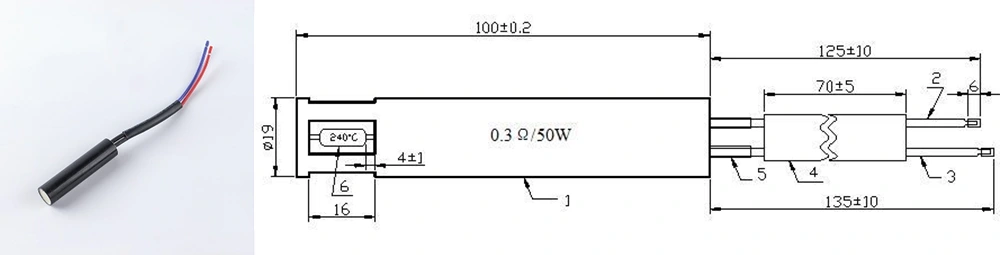

Drawing and dimensions

Packaging & Shipment

RST Electric ensures safe delivery of every 24V Blower Motor Resistor:

● Individual Packaging: Each resistor is wrapped in anti-static bubble film and placed in individual boxes to protect the housing and prevent lead damage.

● Lead Protection: Pre-wired leads are coiled and secured with cable ties or foam sleeves to maintain shape.

● Bulk Packaging: For volume orders, resistors are packed in corrugated cartons with foam dividers to prevent contact.

● Documentation: Packing lists and inspection certificates included with each shipment.

● Freight Options: Express courier (DHL/FedEx/UPS) for small quantities, air freight for medium volumes, sea freight for bulk orders.

All units undergo 100% electrical testing (resistance, insulation, dielectric) and visual inspection before packaging.

FAQ

1.Q: Can it be adapted for commercial vehicles?

A: We have been dedicated to the research and production of 24V Blower Motor Resistor for over 10 years. Our core cooling fan speed control system for commercial vehicles can directly match the 24V electrical architecture of various commercial vehicles. No additional adjustments are required and it can quickly integrate into the original cooling system of the vehicle without the need to modify the installation structure.

2. Q: What measures are in place for quality control?

A: We have an ISO 9001-certified production workshop, a dedicated production line for commercial vehicle electrical components. Each product undergoes 100% resistance, insulation, and dielectric performance tests, and also passes standard tests for commercial vehicles such as temperature cycling, vibration, and endurance to ensure long-term stable operation.

3. Q: Can resistors be customized for different commercial vehicle requirements?

A: We can offer full-dimensional customization, including 50W and custom power, 0.10-1Ω and custom resistance values, 240℃ and custom temperature-rated thermal fuses, as well as various lead specifications, terminal types, and installation methods, which can fully meet the requirements of different vehicle platforms.

4. Q: What are the after-sales and delivery guarantees?

A: The standard model will be delivered within 10 to 15 days, the customized model within 15 to 25 days. Complete test and certification documents will be provided along with the goods; a 12-month warranty is offered, including remote fault diagnosis, spare parts supply and technical support. It can be exported to 40+ countries around the world, and the after-sales response is prompt.
