A Neutral Grounding Resistor is a vital safety device used in medium-voltage electrical systems (typically 2.4kV to 40.5kV) to limit ground fault currents. By inserting a carefully calculated resistance between the system neutral point and earth, the NER restricts fault current to a predetermined safe level—usually between 10A and 2000A—while still allowing protective relays to detect and isolate the fault. This controlled grounding approach protects personnel from dangerous step and touch potentials, prevents damage to transformers, generators, and cables, and reduces arc-flash hazards.
At RST Electric, we specialize in engineering and manufacturing high-reliability Grounding Resistors for utilities, industrial plants, renewable energy farms, and offshore installations. With over 10 years of expertise and full compliance with IEEE 32 and IEC standards, our NERs deliver robust performance in the most demanding environments.
Choosing a Neutral Grounding Resistor requires careful evaluation of several key parameters:
· System Voltage: NERs are available for voltages from 2.4kV up to 40.5kV. The resistor’s insulation level (BIL) must match the system’s impulse withstand requirements.
· Fault Current Rating: Determine the desired ground fault current (e.g., 100A, 400A, 1000A). This value balances fault detection sensitivity with thermal and mechanical stress on equipment.
· Time Rating: NERs are typically rated for short-time duty (10 seconds, 30 seconds, or 60 seconds) corresponding to the maximum duration the fault can persist before the circuit breaker operates.
· Enclosure & Environmental Protection: Outdoor installations require weatherproof enclosures (IP23, IP54, or IP56) with corrosion-resistant materials (stainless steel, painted steel) to withstand moisture, dust, and salt spray.
· Monitoring & Accessories: Optional current transformers, temperature sensors, and alarm contacts enable remote status indication.
We offer Neutral Grounding Resistors for system voltages from 2.4kV to 40.5kV and fault currents from 10A to 2000A. Time ratings are available from 5 seconds to 60 seconds, accommodating various protection schemes.
Our NERs utilize stainless steel grid elements (SUS304 or SUS430) that offer:
· Excellent corrosion resistance for harsh environments
· Stable resistance with low TCR
· High thermal capacity to absorb fault energy without deformation
Choose from:
· Indoor IP20 – for clean, protected environments

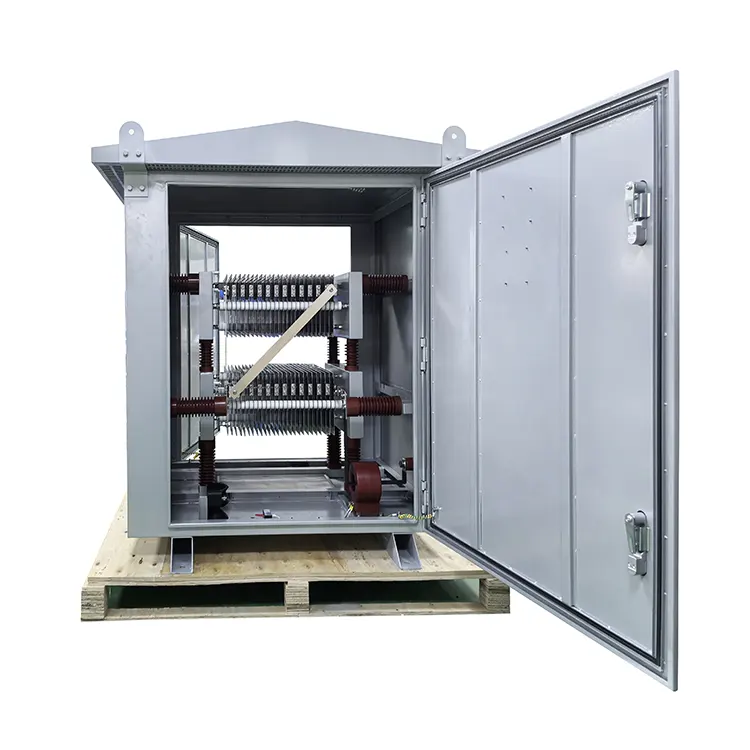

· Outdoor IP23/IP54 – with weatherproof louvers and anti-corrosion coating

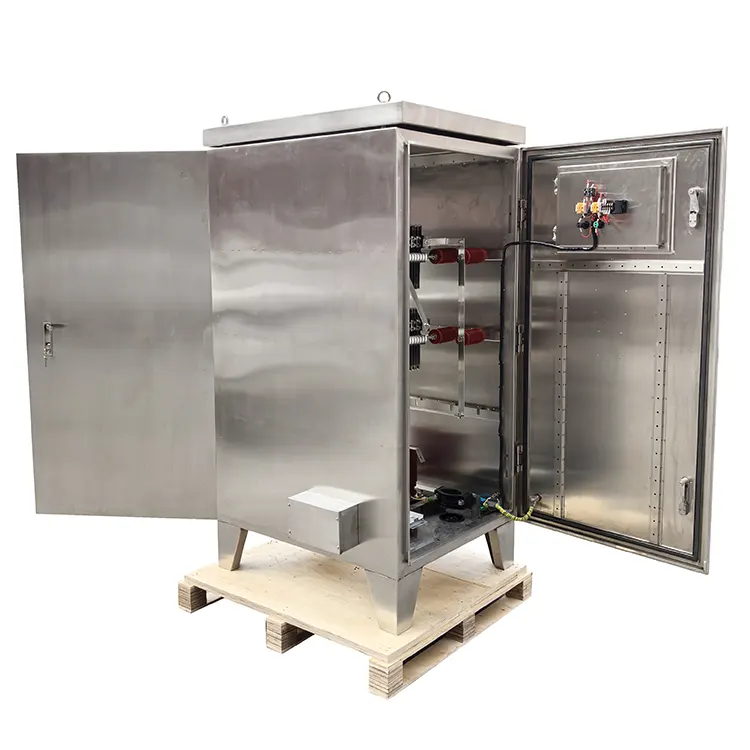

· Marine-grade IP56 – with stainless steel construction for offshore and coastal applications
Optional current transformers, thermal sensors, and alarm contacts provide real-time status and allow remote monitoring. Surge arresters and space heaters are available for additional protection in lightning prone or humid areas.
All Neutral Grounding Resistors are designed and tested to meet IEEE 32 requirements, ensuring safe and reliable operation in global power systems.
· Power Generation: Protect generator stators and step-up transformers from damage during ground faults in thermal, hydro, and nuclear plants.
· Utilities & Substations: Control earth fault currents in distribution and transmission networks, reducing outage risks and improving safety.
· Industrial Facilities: Safeguard medium-voltage motors, switchgear, and cable systems in petrochemical plants, steel mills, and manufacturing sites.
· Renewable Energy: Provide neutral grounding for wind farm collector systems, solar inverter step-up transformers, and battery energy storage systems (BESS).
· Marine & Offshore: Corrosion-resistant NERs for shipboard electrical systems and offshore platforms.
· Mining: Heavy-duty units for underground and surface mining power distribution.
As a certified manufacturer based in China, we maintain full control over design, fabrication, and testing. Our factory-direct pricing ensures competitive costs without compromising quality.
Our 7,000+ square meter facility is equipped with automated grid welding stations, high-voltage test bays, and thermal imaging validation. Every NER undergoes:
· Resistance measurement at ambient and elevated temperatures
· Dielectric withstand testing (up to 95kV for 1 minute)
· BIL impulse testing (up to 170kV) to verify insulation integrity
· Full-load temperature rise validation
We specialize in custom configurations to match your exact specifications:
· System voltages: 2.4kV to 40.5kV (higher available)
· Fault currents: 10A to 2000A
· Time ratings: 5s to 60s
· Enclosures: Indoor, outdoor, marine-grade
· Elements: Stainless steel grid / stainless steel ribbon / custom alloys
· Terminations: Porcelain bushings / cable boxes / custom
· Monitoring: CTs, thermal sensors, alarm contacts
With exports to over 40 countries, including the United States, Canada, Germany, Australia, and Singapore, we have earned a reputation for reliability. Our multilingual engineering support team provides pre-sales consultation, project coordination, and after-sales service.
Q: What is the difference between a Neutral Grounding Resistor and a solidly grounded system?
A: In a solidly grounded system, fault currents can reach tens of thousands of amperes, causing severe damage and dangerous voltage gradients. An NER limits fault current to a safe, predictable level—typically 100–1000A—protecting equipment and personnel.
Q: What time rating should I choose?
A: The time rating should match the clearing time of the protective relays and circuit breakers. Typical ratings are 10 seconds (for faster clearing) or 30–60 seconds (for coordinated protection with downstream devices).
Q: Can an NER be used outdoors?
A: Yes. We offer weatherproof enclosures with IP23, IP54, and IP56 protection, plus corrosion-resistant finishes and stainless steel hardware to withstand rain, salt spray, and dust.
To learn more about our specific Neutral Grounding Resistor offerings, please explore the following product categories:
· Standard NERs – IEEE 32 compliant, stainless steel grid, indoor/outdoor enclosures.
· Marine & Offshore NERs – Stainless steel enclosures, IP56 rated, with enhanced corrosion protection.
· High-Voltage NERs – For systems up to 35kV with BIL ratings to 170kV.
· Custom NERs – Engineered to your exact specifications, including special current ratings, time ratings, and monitoring packages.
