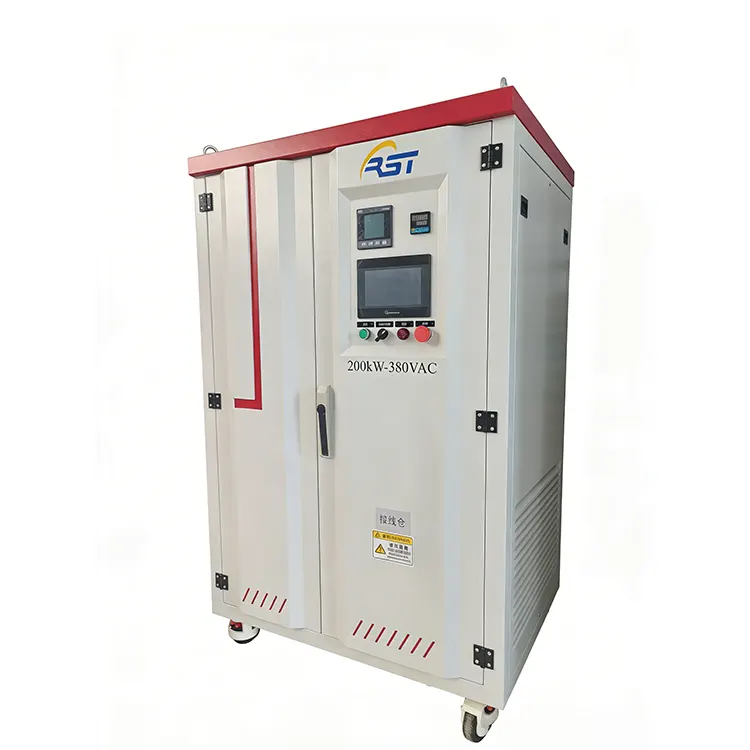

The 200kW AC Resistive Load Bank from RST Electric is a versatile testing solution tailored for medium-scale power validation tasks. Suitable for 400V AC systems at 50/60Hz, this 200kw Resistive Load Bank features stepped load control with a minimum step of 1kW, allowing precise simulation of real-world electrical loads for diesel/gas generators, UPS systems, and solar inverters.Its modular design simplifies maintenance, while integration of top-brand components (Schneider contactors, industrial-grade PLC) guarantees long-term reliability.
The unit includes a CET PMC series multi-function meter for real-time, Class 0.5 accurate display of voltage, current, power, and frequency.Available with optional remote control via PC software or Modbus-RTU (RS485), it adapts seamlessly to automated test environments. Whether deployed in data centers, solar farms, or industrial plants, this load bank provides the accuracy and durability required for critical power testing.
|
Parameter |
Specification |
|
Model |
RST-200kW-400V |
|
Load Type |
Resistive (Pure resistive, Power Factor = 1.0) |
|
Rated Voltage |
AC 400V / 415V / 440V (Customizable) |
|
Frequency |
50Hz / 60Hz (Auto-sensing) |
|
Number of Phases |
3-Phase 4-Wire (3P4W) + Ground (Customizable) |
|
Rated Power |
200kW @ PF 1.0 |
|
Control Power (Aux.) |
AC 400V (3P4W) or external 220V single-phase (User selectable) |
|
Load Step Resolution |
1kW Min. Step Configuration: 1kW + 2kW×2 + 5kW + 10kW×2 + 20kW + 50kW×3 Load step configuration is fully customizable upon request. |
|
Protection Functions |
Short circuit protection, over-current protection, over-voltage protection, fan failure protection (air volume interlock), over-temperature protection (automatic load shedding + alarm), emergency stop. |
|
Measurement Parameters |
Real-time display of 3P Voltage, Current, Active Power (kW), Reactive Power (kVAR), Apparent Power (kVA), Power Factor, Frequency. |
|
Display Accuracy |
Class 0.5 (IEC standard) |
|
Loading Accuracy |
±3% (Overall) / ±5% (Per step) |
|
Cooling Method |
Forced air cooling (Bottom intake / Top exhaust or Horizontal). Automatic fan start/stop interlocked with load contactors. |
|
Chassis Construction |
Customized sheet metal, cold-rolled steel plate with electrostatic plastic spraying. |
|
IP Protection Level |
Standard: IP20 (Indoor) Optional: IP23 (Drip-proof) / IP54 (Outdoor weatherproof) |
|
Movement Method |
Top lifting lugs + Bottom forklift channels + Heavy-duty castor wheels (Optional). |
|
Duty Cycle |
Continuous operation (24/7) |
|
Noise Level |
≤ 75dB @ 3 meters distance |
|

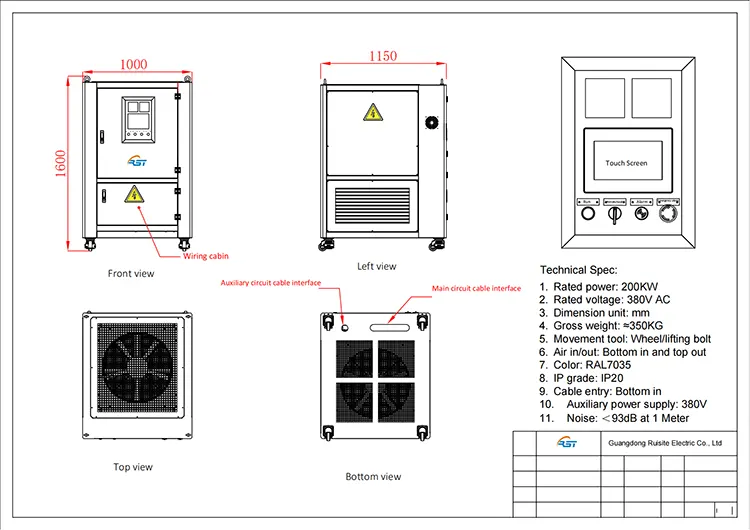

Dimensions (W×D×H) |
950mm × 1150mm × 1650mm (Customizable) |
|
Weight |
Approx. 350kg (depending on options) |
|
Color |
RAL 7035 (Gray) / Customizable |
|
Meter Brand |
CET (China Electric Tech) PMC series or Equivalent high-end brand. |
|
Main Components |
Contactor: Schneider / ABB; PLC: Siemens / Delta; Resistor: Ni-Cr alloy (self-developed). |
|
Communication |
RS485 + Modbus-RTU (Standard). Ethernet / TCP/IP (Optional). |
|
Shipping List |
AC Load Bank ×1, Test Report ×1, Instruction Manual (English) ×1, Software CD ×1, RS485 Converter ×1 (for remote control option). |
1kW minimum step allows precise simulation from no-load to 200kW full load, supporting diverse testing requirements from small battery chargers to large generator sets.
Fast load step changes (contactors electrically operated and held) enable dynamic simulation of real-world load conditions, including sudden load rejection tests and transient response analysis.

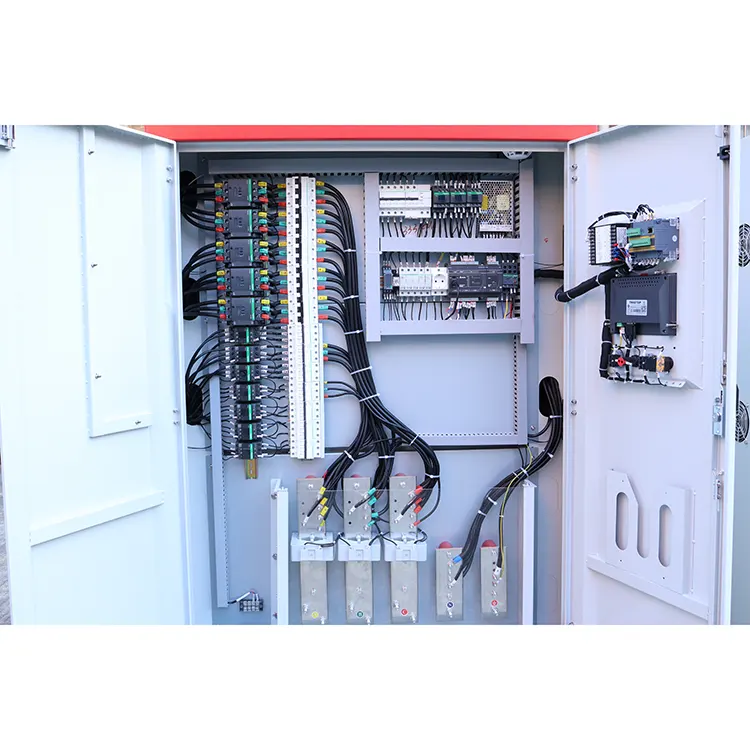

Utilizes world-famous brand components: Schneider/ABB contactors, industrial-grade PLC, and self-developed nickel-chromium alloy resistive elements (stainless steel sheathed, 3-year warranty).

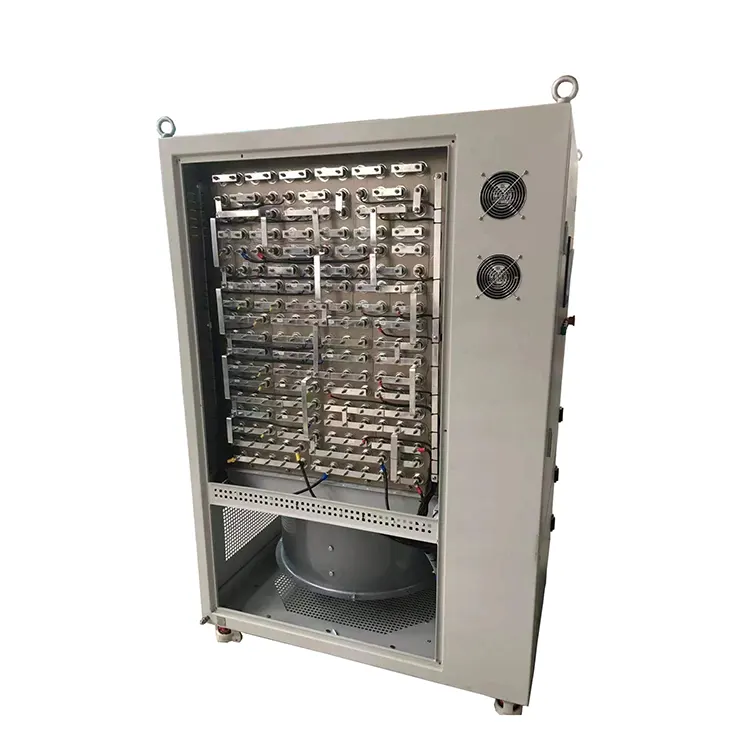

Resistive elements mounted in easily accessible, slide-out trays. Modular design simplifies maintenance, reduces downtime, and lowers total cost of ownership.
Standard: Push-button panel with digital meters;
Optional: 7-inch color touchscreen HMI with programmable logic controller (PLC) that allows customized automatic test sequences. Users can pre-set load profiles (multiple steps with duration) for fully automated generator validation.
Over-temperature monitoring with automatic load shedding, fan failure detection with load interlock, branch circuit fuses on each load step (50kW max per branch), emergency stop button, and separate control/thermal compartments to prevent heat damage to sensitive electronics.
200kw Resistive Load Bank is ideal for commissioning, proof-of-load testing, periodic reliability exercises, and preventing engine "wet-stacking" (unburned fuel build-up) with minimum load regulation. Meets NFPA 110 standards for emergency standby power systems.
Validates performance, runtime (battery discharge test), and efficiency of 3-phase UPS units in data centers, hospitals, and critical infrastructure facilities.
Tests grid-tied and off-grid inverters under controlled resistive loads to verify power output, thermal performance, and grid compliance.
Evaluates battery and inverter performance in ESS applications, including charge/discharge cycle testing and system validation.
Ensures reliability of AC power sources and Power Distribution Units (PDUs) in manufacturing environments, automotive plants, and aerospace facilities.
|
Control Mode |
Description |
|
Local Manual |
Industrial-grade push-button switches with LED indicators. Each load step can be manually switched on/off. Multi-function digital meter displays all electrical parameters. |
|
Local PLC + HMI |
7-inch color touchscreen. Programmable automatic load profiles, data logging, real-time trending charts, and USB data export. Password-protected access levels. |
|
Remote PC Software |
Windows-based software allows full load bank control from a laptop/PC. Automatic load profiles, real-time graph display, data recording, and test report generation (exportable to Excel/Word/JPG). |
|
Modbus-RTU (RS485) |
Standard communication interface for integration into Building Management Systems (BMS), SCADA, or existing automation infrastructure. Modbus registers provided for remote indication and data acquisition. |
RST Electric ensures safe and timely delivery of every 200kW Resistive Load Bank:
Protective Packaging – Industrial-grade anti-static and moisture-barrier film wrapping, placed in customized high-density foam cushioning with reinforced plywood case for heavy-duty units.
Structural Fixation – Internal bracing and shock-absorbing pads to prevent component shift or vibration damage during transit.
Terminal & Control Panel Protection – Terminal covers sealed with shrink-cap, control panel wrapped with bubble film and corner protectors to prevent dust, moisture, and impact.
Documentation – Packing list, factory test report, resistance measurement certificate, thermal switch/NTC datasheet, wiring diagram, and installation manual included.
Freight Options –
Express courier (DHL/FedEx/UPS) for sample units;
Air freight for small to medium batches;
Sea freight (20FT/40FT container) for bulk orders, with wooden pallet and strapping for forklift handling.
Customs & Compliance – Export-standard fumigated plywood cases, compliant with ISPM-15 for international shipping.
When high-capacity load testing meets continuous-duty reliability, RST Electric delivers.
Certified manufacturer based in China, specializing in high-power resistive load banks (1kW – 500kW+) for generator, UPS, and battery testing.
In-house element winding, welding, assembly, and thermal calibration – full quality control under one roof.
Factory-direct pricing with transparent structure, no middlemen, no hidden costs.
ISO 9001:2015 certified facilities with dedicated production lines for heavy-duty load banks.
100% testing before shipment:
Stepped/continuous power loading test (0 → 25% → 50% → 75% → 100%)
Insulation resistance & high-voltage withstand
Fan interlock & thermal protection (overtemp cut-off)
Control interface verification (remote/local, PLC, PC)
Engineering team experienced in thermal simulation, airflow design, and load step accuracy calibration.
Proven supplier to generator manufacturers, UPS integrators, data centers, shipyards, and power utilities.
Exported to over 40 countries including Germany, USA, Japan, Australia, and UAE.
Deep understanding of international testing standards:
IEC 60146, IEC 61000 (EMC)
UL 508A (industrial control panels)
NEMA ICS 10, GB/T 13675
|
Feature |
Options |
|
Rated Power |
200kW (other ratings: 50kW / 100kW / 300kW / 500kW available) |
|
Load Type |
Pure resistive (PF=1.0) / R-L / R-C customizable |
|
Voltage |
AC 400V / 415V / 440V / 480V / 690V (customizable) |
|
Phases |
3P3W / 3P4W + Ground / Single-phase |
|
Load Step Resolution |
1kW, 5kW, 10kW, or stepless (SCR controlled) |
|
Control Mode |
Manual (toggle/push-button) / Remote (dry contact) / PLC / PC (RS485 Modbus) |
|
Display |
Digital (V, A, kW, Hz, PF, running time) / Touchscreen HMI |
|
Cooling |
Forced air (axial fan) / Ductable remote air discharge |
|
Enclosure |
IP23 (indoor) / IP54 (outdoor) – weatherproof with louver protection |
|
Protections |
Over-temperature, fan failure, door interlock, emergency stop |
|
Connection |
Camlock / Copper busbar / Cable lug termination |
|
Data Logging |
Optional: USB export / SD card / PC software for test report generation |
Lead time:
Standard 200kW configuration: 15–20 days
Full custom (PLC, touchscreen, data logging): 25–35 days
Standard 18-month warranty, extended options available (up to 36 months)
Lifetime support includes:
Remote troubleshooting and firmware updates
Load bank calibration service (annual re-certification)
Spare parts (heating elements, fans, contactors) stocked for 10+ years
Free technical consultation for load bank sizing, step resolution planning, and generator/UPS test procedure design
