Wirewound Rheostat

The Wirewound Rheostat from RST Electric represents a time-honored technology that remains indispensable in applications where manual, continuous adjustment of electrical parameters is required. Unlike fixed resistors or even adjustable resistors with preset taps, this Power Rheostat features a full-length resistance element wound on a ceramic tube, with a sliding contact that moves along the winding to provide infinitely variable resistance between the fixed end and the moving wiper. The exposed construction allows for excellent heat dissipation and easy visual inspection of the contact position. The resistance wire is precision-wound on a high-purity ceramic core, selected for its thermal stability and electrical insulation properties.

The sliding contact arm is designed for smooth operation and reliable electrical contact, with a knob or handle for manual adjustment. Available in power ratings from 25W to 500W, this Adjustable Power Rheostat is ideal for educational laboratories demonstrating Ohm's law, industrial applications requiring field adjustment of motor speeds, or maintenance shops needing variable loads for testing. While modern electronics have replaced rheostats in many applications, their simplicity, ruggedness, and intuitive operation make them the preferred choice in specific niches where digital controls are impractical or unnecessary.

As a trusted Wirewound Rheostat manufacturer in China, RST Electric combines over 10 years of resistor engineering expertise with traditional manufacturing techniques to deliver components that meet the needs of both vintage equipment restoration and modern hands-on applications.

Technical Specification

What are the product advantages?

Our Wirewound Rheostat adopts a sliding contact structure, allowing for continuous and smooth adjustment. It can achieve stepless adjustment from zero resistance to full resistance. For applications requiring precise and non-stepwise control, it can provide stable and accurate resistance adjustment effects, and is suitable for various precise control needs.

We have selected high-purity ceramic material to create a sturdy main body, which has excellent heat resistance and outstanding electrical insulation properties. Even under long-term high-temperature operation, it can ensure the safety of use and eliminate the risk of insulation failure. The open wound-winding design is adopted, with the resistance elements fully exposed. This not only enables maximum heat dissipation, avoiding the impact on performance due to heat accumulation, but also allows for intuitive viewing of the contact pad positions, facilitating daily inspection and debugging.

The power range is wide, covering from 25W to 500W. It can meet the basic scenarios such as teaching laboratories and scientific research training, and also be suitable for professional scenarios like industrial control cabinets. It has extremely strong versatility. The operation method is simple and intuitive, with pure manual knob adjustment. There is no need for programming operation or professional training. You can start using it right after opening the box, reducing the usage threshold.

We adopt a standard panel installation design, combined with threaded sleeves and dedicated mounting accessories. It can be quickly installed on various control panels and experimental boards, with a simple and efficient installation process. The contact structure is made of anti-oxidation material to create sliding arms, and after thousands of adjustments, it can still maintain stable electrical contact, eliminating the problem of poor contact.

The resistance element has a high visibility. Users can clearly see the relative positions of the contact points and the winding. It is used for teaching demonstrations and practical experiments, providing intuitive feedback and enhancing teaching and practical effectiveness. The overall structure is purely mechanical, without any easily damaged electronic components. Daily maintenance is not complicated and the service life is long, with extremely low maintenance costs in the future. It is also an ideal replacement part for old-fashioned teaching, industrial and laboratory equipment for restoration, perfectly meeting the original specifications of retro equipment.

Product Applications

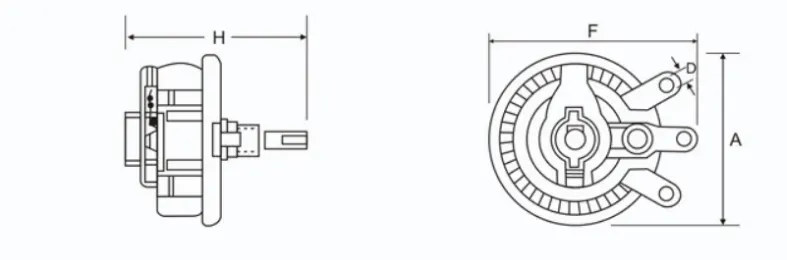

Drawing and dimensions

Package and shipment

RST Electric ensures safe delivery of every Wirewound Rheostat:

● Individual Packaging: Each rheostat is wrapped in anti-static bubble film and placed in individual boxes to prevent mechanical damage to the ceramic body and contact arm.

● Bulk Packaging: For volume orders, rheostats are securely packed in corrugated cartons with foam dividers to prevent contact during transit.

● Shaft Protection: The adjustment knob and shaft are protected with foam sleeves to prevent bending or damage.

● Terminal Protection: Solder lugs are covered to prevent bending.

● Documentation: Packing lists and inspection certificates included with each shipment.

● Freight Options: Express courier (DHL/FedEx/UPS) for small quantities, air freight for medium volumes, sea freight for bulk orders.

All units undergo 100% electrical testing and mechanical operation check before packaging to ensure smooth adjustment and proper resistance values.

What are the advantages compared to our competitors?

We are a legally certified manufacturer in China. We have been deeply engaged in the research and production of Wirewound Rheostat for over ten years. We are a professional manufacturer of variable resistors. We strictly control the entire process from ceramic core procurement, resistance wire winding, contact component assembly, and final product inspection, ensuring stable and uniform product quality from the source and eliminating inconsistent quality. At the same time, we adhere to the factory direct supply model, eliminating all intermediate links, and the pricing is transparent without any hidden charges, allowing customers to purchase high-quality variable resistor products at a more favorable cost.

We have an ISO9001-certified production facility and a dedicated assembly line for specialized variable resistors. The production process is standardized and strictly controlled. Before each wound variable resistor leaves the factory, 100% comprehensive electrical tests are completed, covering core indicators such as resistance value accuracy, contact conductivity, and insulation performance. Simultaneously, mechanical life tests are conducted to ensure that the product can still operate stably after thousands of adjustments. We have an experienced engineering team dedicated to the research and customization of manual control components for various industries, and can precisely match the customized needs of different industries.

With stable quality and professional services, we have become long-term partners for major universities, industrial control manufacturers, and laboratory equipment enterprises worldwide. Our products are exported to 30+ countries around the world, including the United States, Germany, India, Brazil, and South Africa. In the manual and simple control application field, we have accumulated profound industry experience and can accurately understand the actual usage needs of various customers.

We offer comprehensive customized services. The power range can be selected from 25W to 500W. Higher power can be specially customized. The resistance range covers 1Ω to 5kΩ. Special resistance values can be customized. The conventional tolerance is ±5%, and custom tolerance can also be provided as needed. The shaft handle type, installation method, and wiring terminal style can be flexibly selected. Customized scales, resistance rulers, and other exclusive services can also be provided to fully meet personalized usage needs.

In terms of delivery and after-sales, the delivery time for regular specifications is 10-15 working days, and the delivery time for customized products is 15-25 working days. Each batch of products is accompanied by complete materials, including factory test reports, material certifications, RoHS and CE compliance statements, to help customers smoothly accept and use them, and ensure that customers have no worries during the procurement process.
