Non-Linear Load Bank

RCD Load Bank: Real-World Non-Linear Load Simulation

The Non-Linear RCD Load Bank from RST Electric represents a paradigm shift from traditional resistive-only load testing. Designed for engineers and researchers who need to simulate real-world electrical loads—complete with reactive power components and varying power factors—this Non-Linear Load Bank integrates three distinct load types: Resistive (R) for pure active power simulation, Capacitive (C) for leading power factor conditions, and Inductive (L) for lagging power factor scenarios. By combining these elements, the RCD load bank can accurately replicate the electrical characteristics of motors, power supplies, UPS systems, and grid-tied inverters, enabling comprehensive performance validation under realistic operating conditions.

High Precision Loading & Flexible Power Factor Control

The load step resolution is an industry-leading 0.1kW for resistive mode and 0.1kVA for RCD mode, enabling precise fine-tuning of test parameters. Loading accuracy is maintained at ±3%, ensuring repeatable and reliable test results. The unit supports two distinct operating modes: R Load Mode (pure resistive) and RCD Load Mode (combined resistive, capacitive, and inductive), selected via the intuitive touchscreen interface. Power factor can be continuously adjusted across the range of 0.65 to 1.0 (lagging or leading), providing full flexibility for standards compliance testing.

Dual-Mode Control & Remote Communication for Smart Testing

Control is dual-mode: local operation via a high-resolution 7-inch touchscreen displays real-time voltage, current, power, frequency, and power factor, along with live trend curves for each parameter. Data logging and export are built-in, allowing engineers to capture test results for analysis. For automated test sequences, the load bank supports RS485/Modbus-RTU remote communication, enabling integration with PC-based software for remote loading, data acquisition, and report generation. As a trusted Non-Linear Load Bank manufacturer in China, RST Electric combines over 10 years of power testing expertise with precision engineering to deliver solutions that accelerate product development and ensure compliance with international standards.

Technical Specification

Product Features of Non-Linear Load Bank

1.RCD Nonlinear Load Simulation – Integrates resistive, capacitive, and inductive elements to accurately emulate real-world loads with adjustable power factor from 0.65 to 1.0 (lagging or leading).

2.Three-Phase Independent Control – Each phase can be loaded separately, enabling unbalanced load testing for three-phase inverters, UPS systems, and power supplies.

3.Ultra-Fine Load Resolution – 0.1kW (resistive) and 0.1kVA (RCD) step increments allow precise simulation of real-world load variations.

4.Dual Operating Modes – Switchable between pure resistive (R) mode and combined RCD mode to support diverse testing requirements.

5.High-Precision Measurement – Class 0.5 multi-function instrument with ±3% load accuracy ensures reliable, repeatable test results.

6.Intuitive Touchscreen Interface – 7-inch HMI with real-time parameter display, trend curves, data logging, and export capabilities – no PC required for basic testing.

7.Remote Automation Ready – RS485/Modbus-RTU communication enables integration with PC software for automated test sequences and data acquisition.

8.Quiet, Lab-Friendly Operation – Forced air cooling with variable-speed fans maintains ≤65 dB noise level, suitable for laboratory and office environments.

9.Compact & Mobile Design

10.Comprehensive Safety – Over-temperature, over-voltage, over-current, and emergency stop protections ensure safe operation during unattended testing.

Product Applications

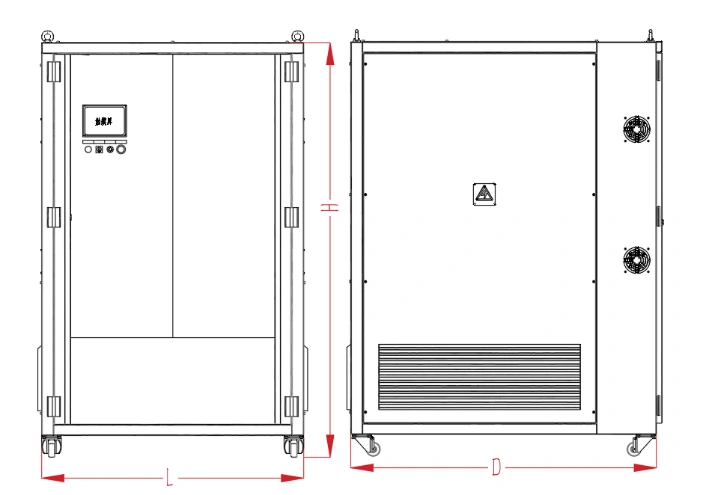

Drawing and dimensions

Package and shipment

RST Electric ensures safe delivery of every Non-Linear RCD Load Bank:

● Heavy-Duty Crating: The unit is mounted on a reinforced wooden skid with foam padding and enclosed in a custom plywood crate for international shipping.

● Vibration Protection: Critical components are secured with additional bracing to prevent damage during transit.

● Documentation: Packing lists, factory test reports, and operating manuals included.

● Freight Options: FCL sea freight, air freight, or door-to-door express available.

All units undergo factory acceptance testing (FAT) including full-load burn-in, calibration verification, and communication protocol validation before shipment.
