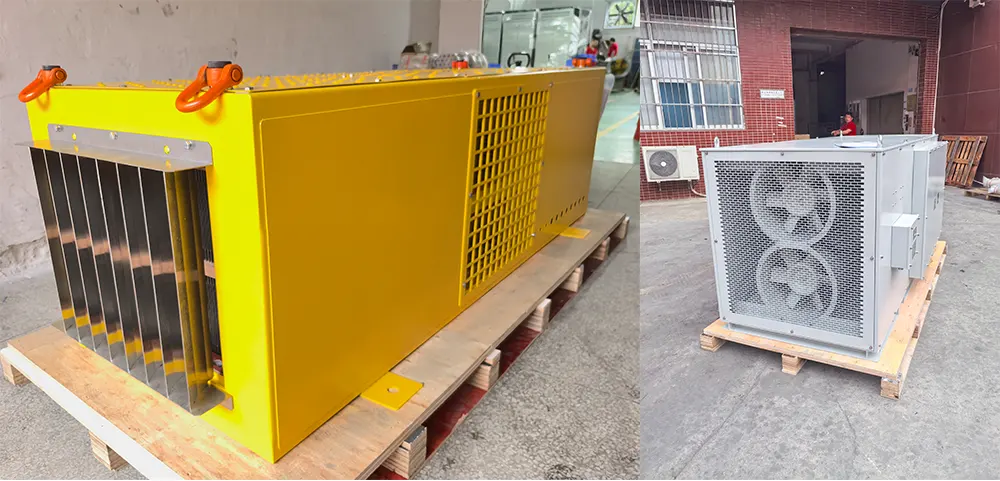

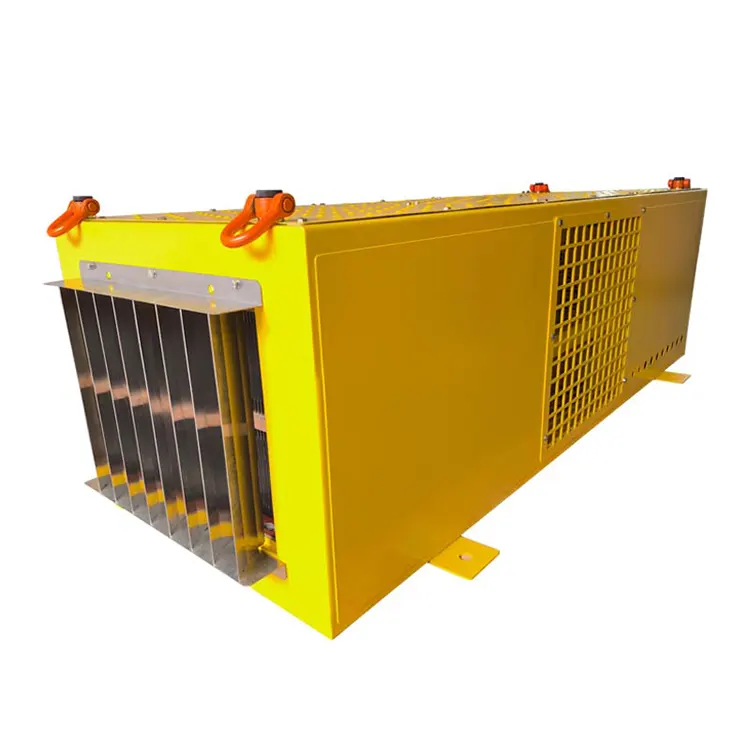

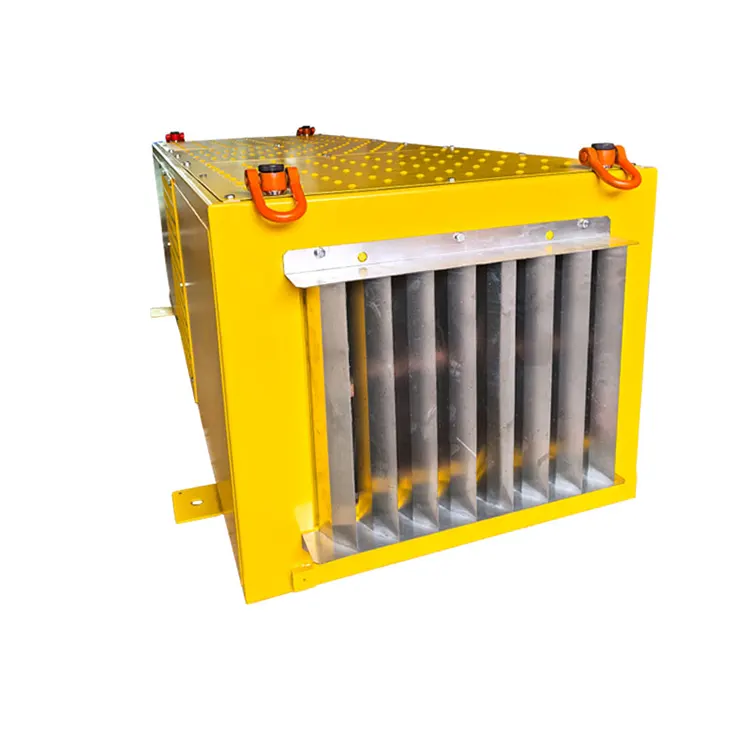

Braking Resistor for Mining Truck

The Braking Resistor for Mining Truck from RST Electric represents the pinnacle of heavy-duty dynamic braking technology. Built to withstand the punishing conditions of underground mines, open-pit operations, and oil drilling sites, this Mining Truck Braking Resistor incorporates extreme environment design principles at every level.

The resistor elements are fabricated from high-grade SUS304 stainless steel or specialized alloy wire, selected for their exceptional corrosion resistance, mechanical strength, and stable electrical properties under repeated thermal cycling up to 1140V AC. Each unit features a vibration-resistant frame with reinforced mounting points, capable of withstanding the constant shocks and impacts encountered on rough haul roads. Thermal management is optimized through forced air cooling with high-capacity fans and carefully engineered airflow pathways, ensuring rapid heat dissipation during frequent, high-energy braking events.

The enclosure is available in both indoor and outdoor configurations with appropriate IP ratings, protecting internal components from dust, moisture, and chemical exposure common in mining environments. With power ratings reaching 2000kW and modular multi-unit configurations, this Braking Resistor for Mining Truck provides the braking capacity required for the largest electric haul trucks, loaders, and drill rigs operating at depths or elevations where safety and reliability are paramount.

As a trusted Mining Braking Resistor manufacturer in China, RST Electric combines over 10 years of power resistor expertise with deep understanding of heavy vehicle dynamics to deliver solutions that maximize uptime and ensure operator safety.

Technical Specification

Adaptation to extreme environments

Our Braking Resistor for Mining Trucks is specifically designed for the complex working conditions in mines. The sturdy casing and sealed components can withstand dust, moisture, mud, and extreme temperatures in underground and open-pit mines, addressing the pain points of equipment being prone to damage and having a short lifespan in harsh environments. At the same time, it has extremely strong anti-vibration and impact performance. The reinforced frame and stable components provide support, capable of withstanding continuous impacts and jolts during operations, ensuring long-term mechanical integrity and preventing equipment from breaking down and causing downtime.

Efficient Heat Dissipation

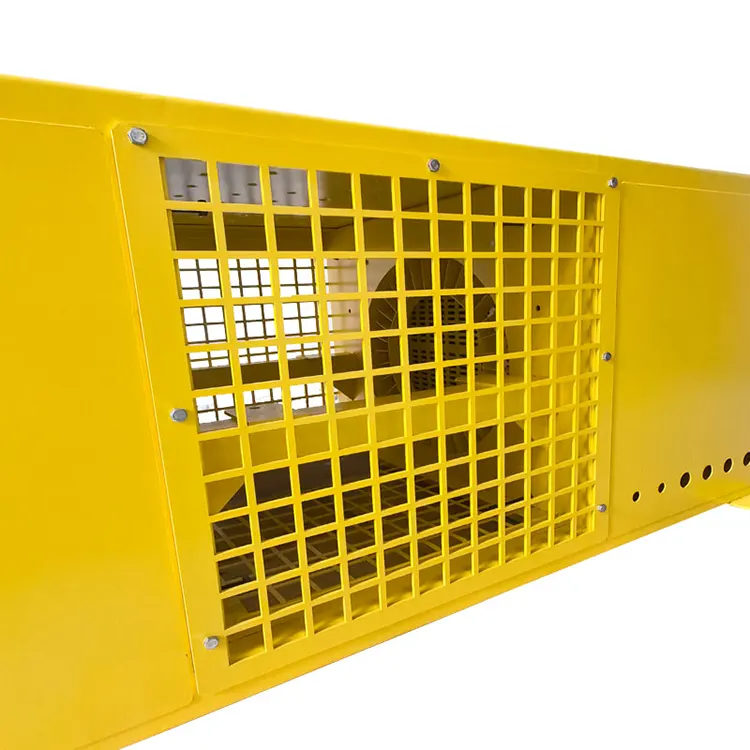

To meet the frequent heavy-load braking requirements of mining trucks, we have equipped with large-capacity forced air cooling and redundant fans to ensure a safe operating temperature during repeated heavy-load braking, and to prevent overheating failures. The product's peak power can efficiently absorb the short-term regenerative energy pulses generated by large electric drive systems on steep slopes, ensuring smooth and safe truck braking and maintaining continuous operation.

Safety Design

Safety is integrated throughout the entire design process. We equip it with a thermal cut-off device, flame-retardant materials, and secure electrical connections to safeguard the safety of operators and equipment, meeting the standards for use in hazardous mining environments. The resistive elements are made of SUS304 stainless steel or alloy wires, which are corrosion-resistant, resistant to mine water, chemical substances, and salt spray, thus extending the product's service life.

Flexible Adaptation

The Braking Resistor for Mining Truck supports modular expansion. Multiple units connected in parallel can achieve several megawatts of braking power, suitable for various large mining trucks. Customizable indoor and outdoor enclosures and compatible protection levels can be provided. The low-maintenance design reduces unplanned downtime in remote mines. The voltage range is 380V - 1140V AC, precisely matching the truck's electric drive system. No modification is required for direct installation, improving efficiency and reducing operating costs.

Product Applications

Drawing and dimensions

About Shipment

RST Electric employs specialized packaging protocols for all Braking Resistor for Mining Truck shipments:

● Heavy-Duty Crating: Each unit is mounted on a reinforced steel skid and enclosed in a custom plywood crate with internal bracing to prevent movement during transit.

● Weather Protection: Vapor Corrosion Inhibitor (VCI) film and desiccant packs protect against moisture during sea freight.

● Lifting Provisions: Clear labeling of lifting points and center of gravity; shipping brackets included for secure tie-down.

● Modular Packaging: For multi-unit configurations, individual units are crated separately or combined on a single heavy-duty flat rack.

● Documentation: Comprehensive shipping documents include packing lists, certified test reports, material certifications, and customs clearance support.

● Freight Options: We coordinate with specialized heavy-lift freight forwarders for FCL sea freight, project cargo, or air freight as required.

All units undergo full-load testing and final inspection before packaging to ensure they arrive ready for installation in remote mining locations.

Company Strengths

Source factory

RST Electric is a local and legitimate manufacturer in China. We have been dedicated to the research and manufacturing of Braking Resistor for Mining Trucks for over 10 years. We have been deeply involved in the mining braking field and can independently control the entire process of design, material selection, production and testing. This not only ensures that the products are suitable for extreme environments in the mining industry, but also eliminates the middle links, providing transparent factory direct supply prices, allowing customers to balance high quality and low cost.

Strict Testing

RST Electric has an ISO 9001-certified factory and a dedicated production line for heavy-duty resistive components, with standardized processes and strict control. Before each product leaves the factory, 100% electrical testing is completed, along with thermal imaging and vibration simulation tests to verify performance under mining conditions; a professional engineering team focuses on the electric drive systems for off-road vehicles to ensure product compatibility.

Global Supply Experience

RST Electric is a trusted supplier for global mining contractors and OEMs of mining vehicles. Its products are exported to major mining regions such as Australia, Chile, Peru, South Africa, Canada, Russia, etc. It has profound experience in both underground and open-pit mining fields and is skilled in providing braking solutions for electric mining trucks and LHD (Load Handling Device) excavators, precisely meeting the needs of the mining industry.

Comprehensive Customization Service

RST Electric offers comprehensive customization services. The power range is 404kW - 2000kW + which can be expanded in parallel. The voltage is 380V - 1140V AC and customizable DC. The enclosure protection, component materials, cooling methods, and installation brackets can all be customized as per requirements, meeting the needs of different mining scenarios.

Reliable delivery guarantee

Customized products have a delivery period of 30-45 working days, with complete technical documentation provided; 18-month warranty, global spare parts delivery and remote diagnosis are offered. Engineers familiar with mining operations can be arranged to provide on-site debugging and training, ensuring the stability of mining operations throughout the process.

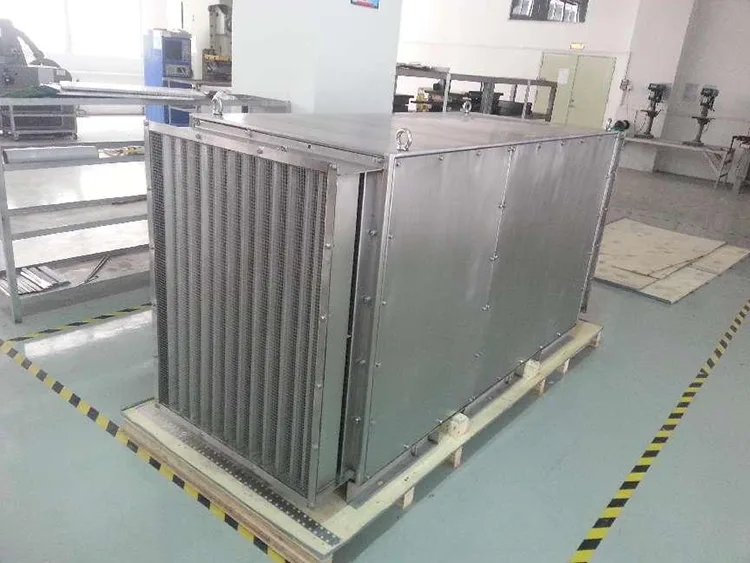

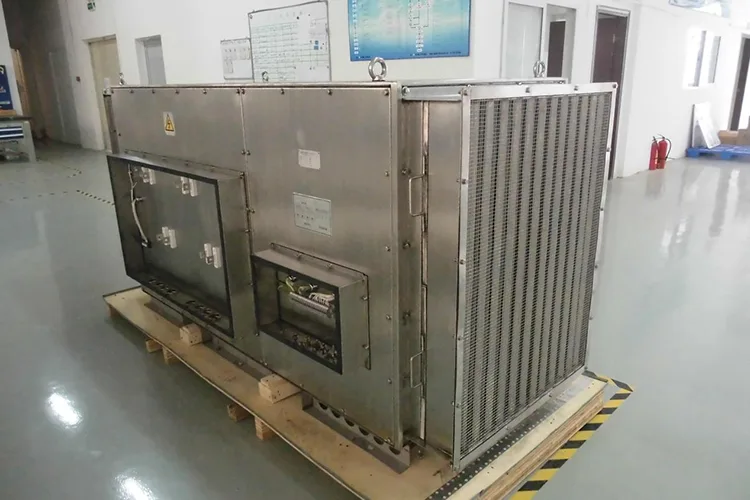

Project Cases

1. Project Background

During tripping in, tripping out and emergency braking of offshore drilling rig electric drive system, rotating motor generates massive regenerative energy. Without effective energy dissipation via braking resistor, excess DC voltage will damage the rig inverter, lead to unexpected platform shutdown and huge offshore operation loss. Conventional general-purpose braking resistors fail to withstand harsh offshore working condition ranging from -45℃ to +45℃, high ambient humidity and confined cabinet layout, resulting in overheat and short-circuit frequently.RST Electric engineered and manufactured customized RSTO400kWx6+65kW-3Rx6+8R IP20 dynamic braking resistor cabinet specially for offshore oil rig inverter braking project, complying with TB/T1393-93 industry standard for locomotive resistor equipment.

2. Core Technical Specifications & Design Advantages

Electrical Ratingl

Total Rated Power: 400kW×6 main circuit +65kW auxiliary circuit (Total 2465kW)

Rated Resistance @20℃: 3Ω±5%×6 +8Ω±5%, Max working DC voltage: DC1100V

Protection Class: IP20 indoor enclosure, horizontal independent forced air cooling layout

Ambient Condition: Working Temp: -45℃~+45℃, Storage Temp: -60℃~+60℃, Max RH≤90%, Installation altitude ≤2000m, for non-explosive & non-corrosive gas offshore platform environment.

Material & Structural Features

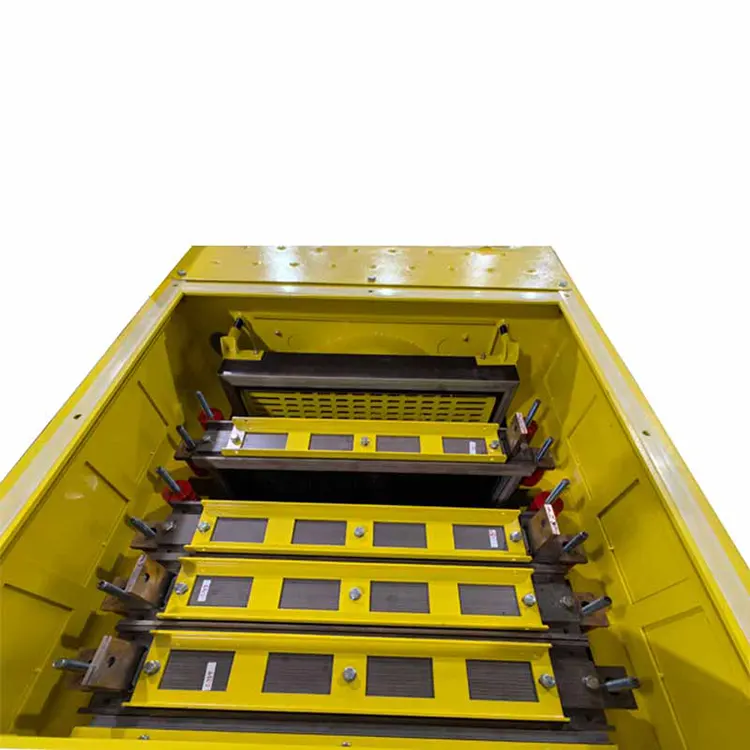

(1) Resistor Core: Nickel-chrome alloy resistance strip with high-alumina porcelain insulation base, outstanding thermal shock & moisture resistance for offshore high humidity; identical resistor units are interchangeable for easy field maintenance & replacement.

(2) Forced Cooling System: Equipped with 2pcs T540-510-5.5# axial fans (2×5.5kW, AC380V/50Hz). Pre-cooling for 15 mins before startup; post-operation fan run another 15 mins after equipment shutdown to eliminate residual high temperature inside cabinet.

(3) Dual Safety Protection System (Key Differentiator for Offshore Application)

Air pressure interlock switch: 20Pa default setpoint, sends fault alarm once airflow insufficient to prevent overheat;

280℃ normally closed thermal cutout installed at resistor hot spot, triggers alarm when over-temperature occurs to avoid fire & insulation breakdown.

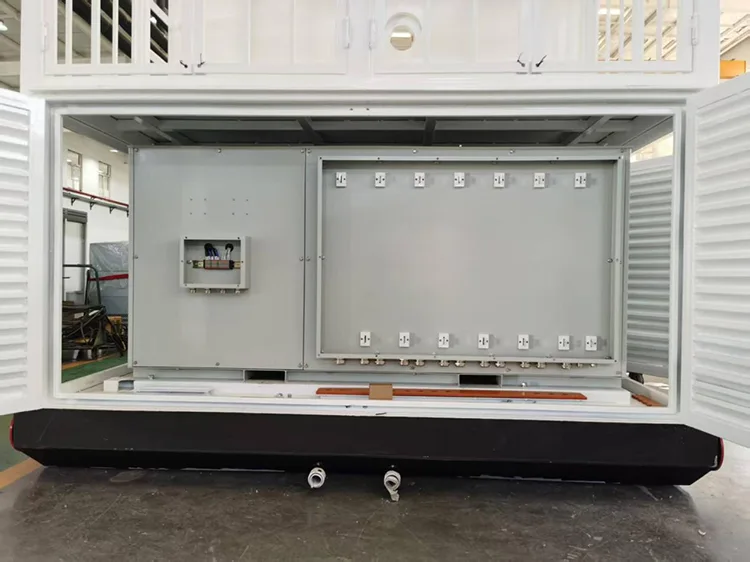

(4) Cabinet Construction: Heavy-duty steel frame with split protective cover, separated terminal block layout for fan circuit, temperature signal circuit and main power wiring, convenient for onsite connection with rig control cabinet.

3. Onsite Installation & Commissioning Standard

1. Full installation follows TB/T1393-93 specification; wiring is divided into three independent compartments for fan power, sensing cable and high-power braking cable; cabinet is isolated separately with air outlet away from operator walkway to avoid hot air scald injury.

2. Pre-commissioning test includes fan rotation check, air pressure verification and insulation resistance test; system is forbidden to connect with drilling rig until full debugging passes.

3. Operation rule: Pre-ventilate cabinet for 15min before startup to remove internal moisture; no flammable goods allowed around resistor cabinet; air inlet & outlet filter shall be cleaned regularly to avoid airflow blockage & overheating.

4. Troubleshooting & After-sale Maintenance Service

Common onsite faults (short-circuit, abnormal resistance value, overheating, false thermal alarm) are covered in factory maintenance manual;

Periodic Inspection Standard: Use 1000V megohmmeter for insulation test (≥50MΩ for resistor to ground; ≥2MΩ for fan motor winding); 4500V /1800V AC withstand voltage test for resistor & fan without breakdown or flashover.

Warranty Term: 12 months after commissioning or 18 months from shipment date (whichever comes first). Free repair & replacement for manufacturing defects; lifelong spare parts supply & global technical support for customers beyond warranty period.

5. Project Outcome

1. Full absorption of regenerative braking energy eliminates inverter overvoltage breakdown; stable continuous drilling operation on offshore platform.

2. Dual thermal & air pressure protection realizes zero fire & short-circuit accident during long-term field service.

3. Modular interchangeable design cuts platform maintenance labor cost by 60%.

Contact RST Electric for customized high-power braking resistor for offshore rig, crane, mining inverter system, get free technical proposal & quotation.
